ELFK17210
| Manufacturer | |
| Description | Conn Terminal Block F 17 POS 5.08mm Screw Cable Mount 15A TERM BLOCK PLUG 17POS 5.08MM |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Current Rating (Max) | 15 | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 25.53 |
| Pitch | 5.08 mm | Height | 15.57 |
| Packaging | Tray | Wire Gauge | 14-26 AWG |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Number of Rows | 1 |
| Plug Wire Entry | 45° | Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Oxide | Length - Overall | 86.36 |
| Number of Contacts | 17 | Number of Positions | 17 |
| Terminal Block Type | Plug, Female Sockets | ||
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | Number of Levels | 1 |
| Positions Per Level | 17 | ||
Documents & Media
Similar Parts
ELFH17210J
amphenol pcd
HEAD CLOSED ENDS EJECT EARS Pluggable Terminal Blocks Hor Header W/Eject Ears 17pos .2in TERM BLOCK HDR 17POS R/A 5.08MM
ELFA34210
amphenol pcd
RIGHT ANGLE HORIZONTAL HEADER TERM BLOCK HDR 34POS R/A 5.08MM

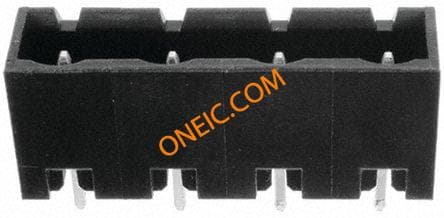

ELFH17250
