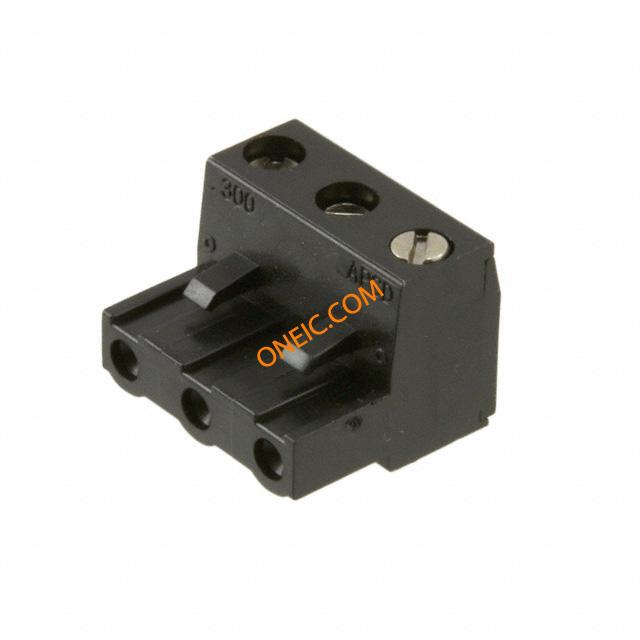

ELFP03410
| Manufacturer | |
| Description | Conn Terminal Block PL 3 POS 7.62mm Screw RA Cable Mount 15A Pluggable Terminal Blocks Power Plug .3in 3 Pos. R/A TERM BLOCK PLUG 3POS STR 7.62MM Non-Fused Terminal Block Cable Mount 3 Way, Screw Down, 300V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pluggable Terminal Blocks | Other Names | APC1186 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 15A | Voltage | 450V |
| Voltage Rating | 300 V | Current Rating (Max) | 15A |
Mechanical
| Color | Black | Pitch | 7.62 mm |
| Material | PPO | Packaging | Bulk |
| Wire Gauge | 14-26 AWG | Termination | Screw |
| Housing Color | Black | Mounting Type | Cable Mount |
| Contact Finish | Nickel, Tin | Number of Rows | 1 |
| Plug Wire Entry | 180° | Contact Material | Copper Alloy, Steel |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Plug, Female Sockets | Number of Positions/Bay/Row | 3 |
Product Info
| Type | Terminal Block | Gender | PL |
| Features | Retention Latches (Non-Wire Side) | Number of Levels | 1 |
| Positions Per Level | 3 | ||
Environmental
| Operating Temperature | +105°C | ||
