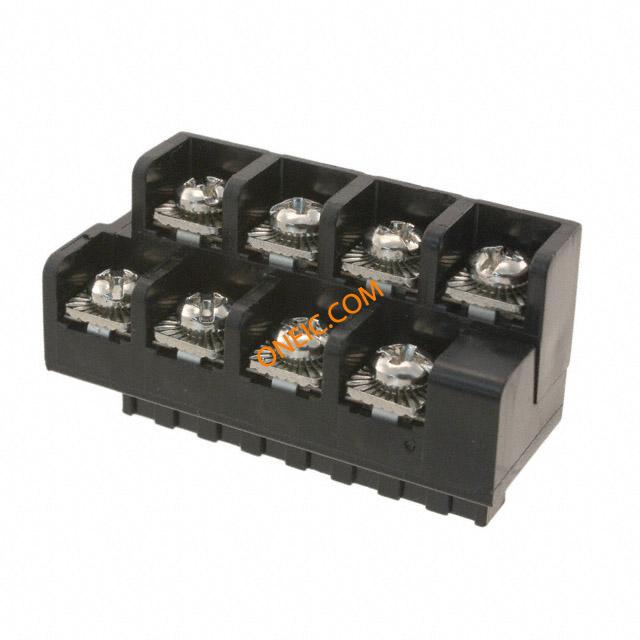

FXPT08200
| Manufacturer | |
| Description | Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 15A Barrier Terminal Blocks FLEXIPLUG 5.08MM 8POS BLACK TERM BLOCK PLUG 16POS 5.08MM Conn; Term Blk; Plug; Screw; 8; 5.08 mm; 26-12 AWG; 15 A; 300 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Barrier Terminal Blocks | Other Names | APC1142 |
| Part # Aliases | 308-0160 | Product Category | Barrier Terminal Blocks |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Voltage - Supply | 300V |
| Current Rating (Max) | 15 A | ||
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Packaging | Bulk | Wire Gauge | 12-26 AWG |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Mounting Style | Through Hole |
| Number of Rows | 1 | Plug Wire Entry | 90° |
| Housing Material | Polyphenylene Oxide (PPO) | Cable Termination | 90° |
| Termination Style | Screw | Number of Contacts | 8 |
| Number of Positions | 16 | Terminal Block Type | Plug, Female Sockets |
| Number of Poles per Deck | 8 | Wire Gauge or Range - AWG | 26-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | FXP FlexiPlug® | Features | Retention Latches (Non-Wire Side) |
| Main Purpose | Retention Latches (Non-Wire Side) | Number of Levels | 2 |
| Positions Per Level | 8 | Output Configuration | Free Hanging (In-Line) |
Environmental
| Operating Temperature | 0 C to + 105 C | ||
