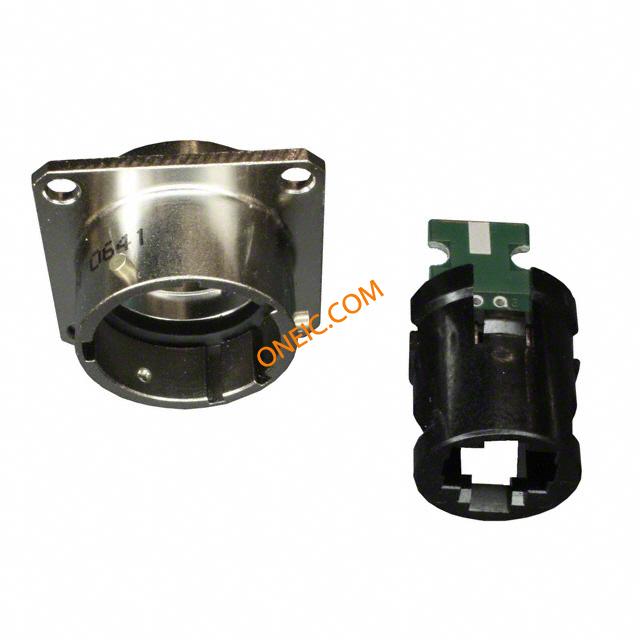

RJ11F22N
| Manufacturer | |
| Description | Conn RJ-11 RCP 6 POS Solder ST Panel Mount 6 Terminal 1 Port CONN MOD JACK 6P6C Modular Connectors / Ethernet Connectors Female Solder Nickel Sq Flange Receptacle RJ 11 FIELD RECEPT 4 MOUNTING HOLES RJ11 NICKEL 6 TINED HOLES |
| Category |
Business
| Other Names | APC1119 | Part # Aliases | 27M3412 |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Nickel | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Unshielded |
| Orientation | Straight | Termination | Solder |
| Mounting Type | Panel Mount | Tab Direction | User Selectable |
| Connector Type | Jack | Contact Finish | Nickel |
| Mounting Style | Panel | Number of Rows | 1 |
| Termination Style | Solder | Number of Contacts | 6 |
Product Info
| Type | RJ-11 | Gender | RCP |
| Series | RJ11 Field | Features | Circular Bayonet Coupling |
| USOC Codes | RJ11, RJ12 | Number of Ports | 1 |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) | ||
Environmental
| Ratings | Cat5e | Seal Rating | IP 68 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
