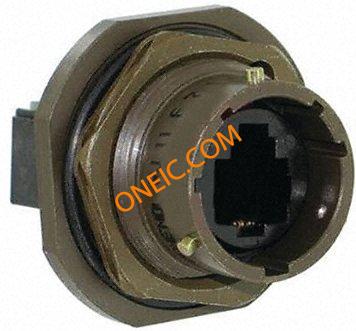

RJ11F71G
| Manufacturer | |
| Description | Conn RJ-11 RCP 6 POS ST Jam Nut 6 Terminal 1 Port COUPLER MODULAR 6POS-6POS Jam nut rcp,female RJ11,Olive drab,Cd Modular Connectors / Ethernet Connectors Female RJ11 Jam Nut Recept Olive Drab connector, metal circular jam nut receptacle, female rj11, bayonet mating, green Amphenol RJ11Field系列 RJ11 母 适配器, 6端口, UTP |
| Category |
Business
| Part # Aliases | 308-0090 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Interface | RJ11 母 | ||
Mechanical
| Depth | 34.9mm | Width | 34.9mm |
| Length | 39.7mm | Shielding | Unshielded |
| Cable Group | 直通 | Orientation | Straight |
| Shield Type | 无屏蔽双绞线 (UTP) | Weight (g): | 26.00000 |
| Mounting Type | Jam Nut | Contact Finish | Nickel |
| Mounting Style | Panel | Housing Material | Metal |
| Mounting Feature | Front Side Nut | Shell Material, Finish | Metal, Olive Drab Cadmium Plated |
Product Info
| Type | RJ-11 | Gender | RCP |
| Series | RJ11Field | Features | Circular Bayonet Coupling |
| USOC Codes | RJ11 | Number of Ports | 1 |
| Base Product Number | RJ11F71G | Convert To (Adapter End) | Jack, 6p6c (RJ11) |
| Convert From (Adapter End) | Jack, 6p6c (RJ11) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
