RJF2PEM1N
| Manufacturer | |
| Description | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Squ flange rcp,IP68 metal gland,RJ45 fem Modular Connectors / Ethernet Connectors RJ45 Inline Recpt Sq Flange Metal Gland connector, metal circular, recept w/bkshl, metal gland, rj45 ethernet, nickel finish Amphenol 直 母 RJ45 连接器 , Cat5e, 面板安装型 |
| Category |
商业参数
| 其他名称 | APC1039 | 零件号别名 | 20J4000 308-0026 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Black | 深度 | 41.3mm |
| 长度 | 82mm | 屏蔽 | Unshielded |
| 方向 | Straight | 安装类型 | Jam Nut |
| 连接器类型 | RJ45，插座, 母座 | 安装样式 | Panel |
| 壳体材料 | Metal | 安装特性 | Metal Gland |
| 端接样式 | Solder Terminal | 触点数 | 4 |
| 外壳材料及表面处理 | Metal, Nickel Plated | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJF | 产品特性 | Circular Bayonet Coupling |
| 方向 | 直 | USOC 编码 | RJ45 |
| 端口数 | 1 | 网络技术 | Cat5e |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
Documents & Media
相关型号

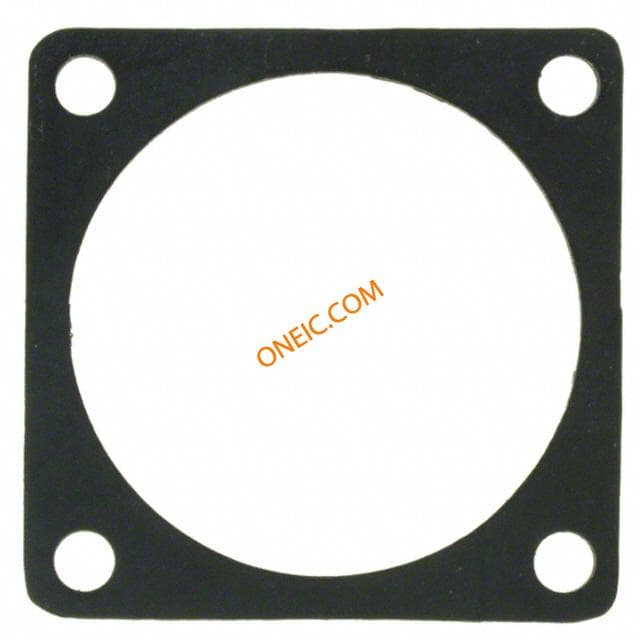

JE18
amphenol pcd
Connector Accessories Panel Gasket For Square Flange Receptacle CONN ACCY GASKET BLACK Circular Connector Seal Gasket Firewire Connectors RJ FIELD GASKET PM RECPT GASKET, PANEL connector accessory, panel gasket for rjfield square flange receptacle Flat gasket for appliance socket, JE18, Amphenol Gasket
RJF21NSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Nickel And Metallized Insert CONN ACCY CAP Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle connector, metal circular, snap cap recept, metalized insert, rj45 ethernet, nickel

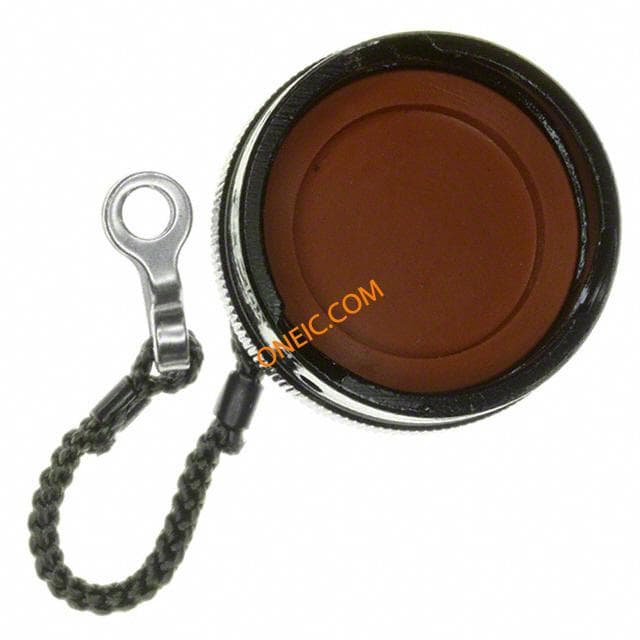

RJFC2B
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for square flange recept, black fin

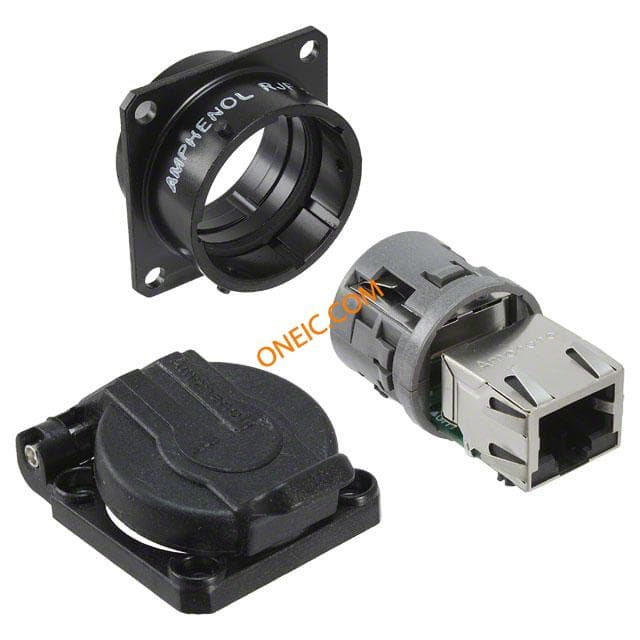

RJF21BSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Black CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk connector, metal circ, panel mount receptw/snap cap, plain insert, rj45, black fin

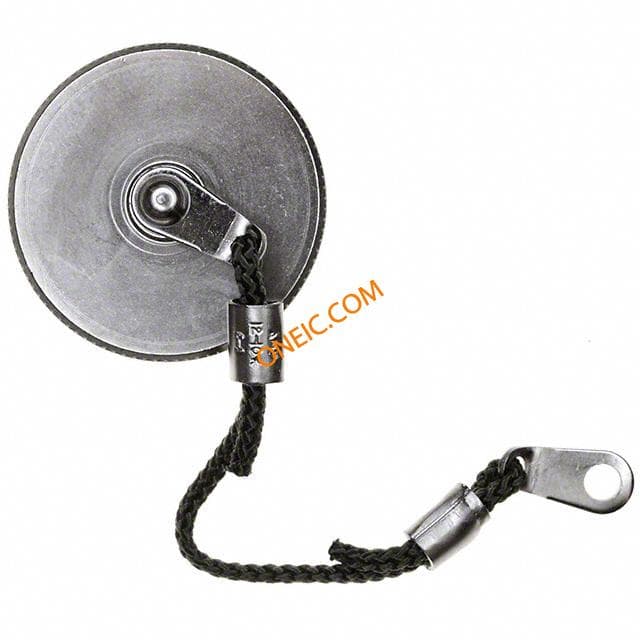

RJFC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP metal cap,sq flange rcp,fem, RJ45 Nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Nickel RECEPTACLE DUST CAP, METAL connector accessory, rj field, cap for square flange receptacle, nickel

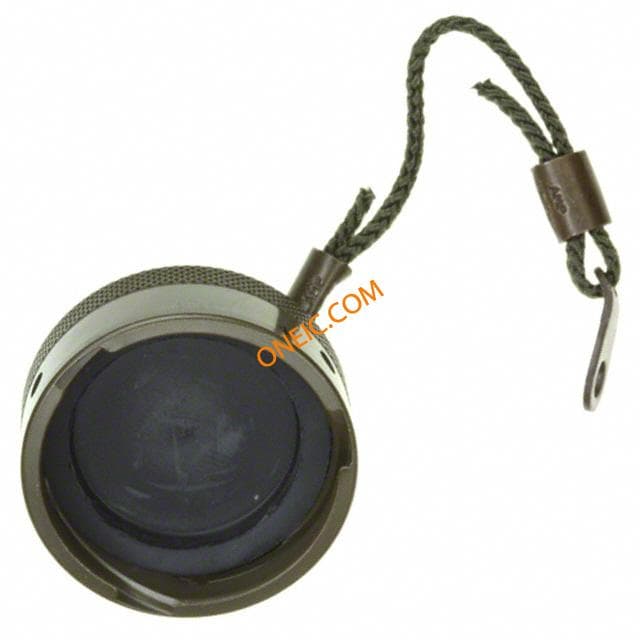

RJFC2G
