31-221-RFX
| Manufacturer | |
| Description | RF Connectors BULKHEAD JACK 50 ohm SOLDER CUP DIE CAST CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc commercial blkhd recept;front mount;solder cup;50 ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold RF/COAXIAL, BNC JACK, STR, 50OHM, SOLDER |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Cable Type | :RG58, RG59, RG179, RG316 | Body Finish | Nickel |
| Body Material | Zinc Die Cast | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock | Connector Style | BNC, RFX |
| Contact Material | :Phosphor Bronze | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | :Straight Bulkhead Jack | ||
Product Info
| Features | Extended Insulation | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
31-10152-RFX
Amphenol RF
RF Connectors GROUNDING LUG BNC GROUNDING LUG hardware;rf coaxial;grounding lug;bnc inside panel on bulkhead receptacle RF Connector Accessories GROUNDING LUG Connector Accessories BNC Grounding Lug GROUNDING LUG, 75 OHM BNC COAXIAL CONN
031-6-RFX
amphenol
Connector Accessories Cap and Chain Nickel Finish CONN BNC CAP & CHAIN
31-6
Amphenol RF
RF Connectors BNC CAP W/ CHAIN CW-123/U RF Connector Accessories BNC CAP W/ CHAIN CW-123/U Connector Accessories BNC 50Ohm Male Cap and Chain MALE CAP

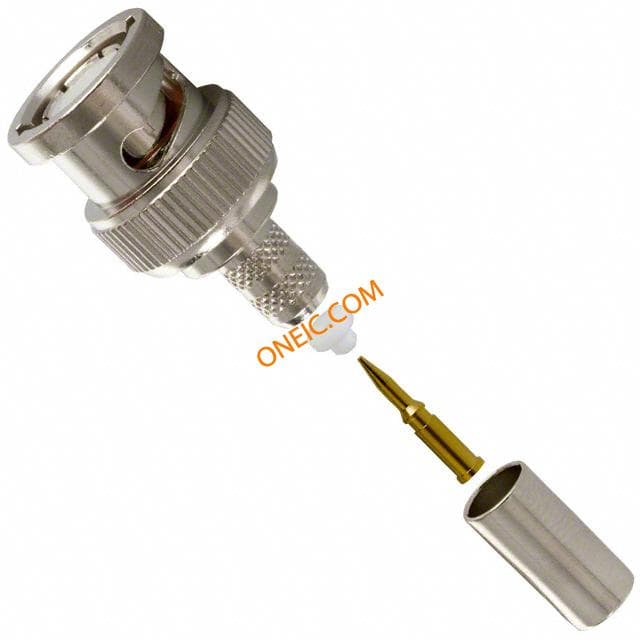

31-321-RFX
