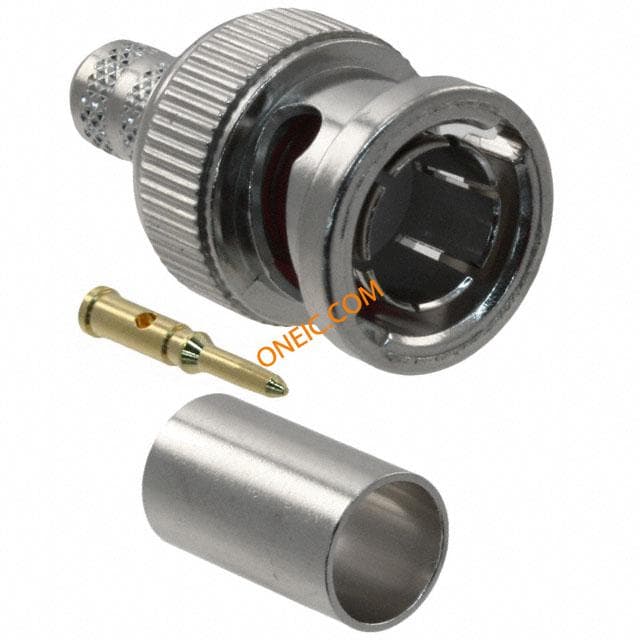

31-71008-RFX
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 031-71008-RFX 16R0627 19M4827 713-9006 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
Mechanical
| Packaging | Bulk | Cable Type | RG-59, RG-140, Belden 8241, Belden 8279 |
| Body Finish | Nickel | Cable Group | RG-59, 140, Belden 8241, 8279 |
| Orientation | Straight | Weight (g): | 11.60000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Connector Style | BNC, RFX | Contact Material | Brass |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Gender | Plug | Polarity | Standard |
| RF Family/Standard | BNC | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Sourcing & traceability
- Datasheet
- BNC 75ohm Plugs
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
