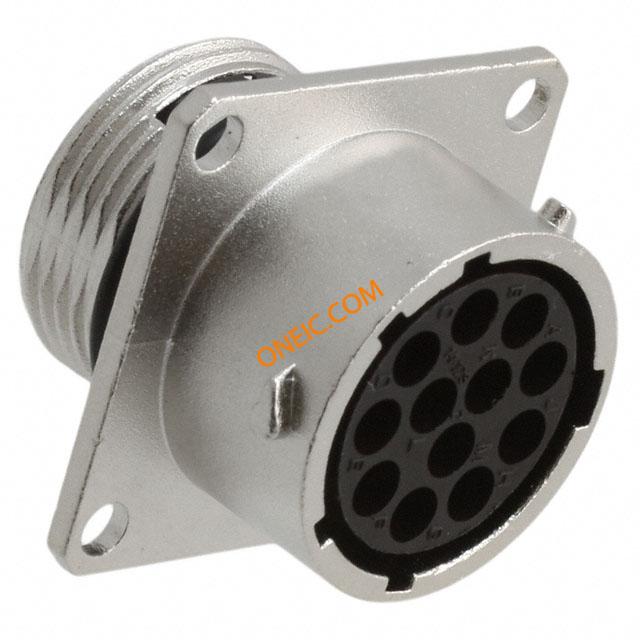

RT0014-12SNH
| Manufacturer | |
| Description | CONN HSG RCPT 12POS WALL MT SKTS RECEPTACLE,PANEL,SIZE 14, 12WAY,SKT Conn; Circular; Receptacla; Box Mount; 12 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 14; socket Square flange receptacle RT360 Poles=12 Female Housing size14, RT0014-12SNH, Amphenol |
| Category |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| 标准 | UL E63093 | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 重量 | 0.025 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 16 |
| 触头类型 | Crimp | 基体材料 | aluminium, zinc |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | flange (4 holes), for panel mounting |
| 封装形式 | size 14 | 壳体镀层 | nickel |
| 插入角度 | :14-12 | 锁定特性 | external bayonet |
| 本体材料 | :Zinc Alloy | 包装数量 | 25 |
| 连接器 - 电缆 | socket | 第一触头极性 | :Socket |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | :Socket | 系列 | :RT360 |
| 适配器系列 | RT360 | 单元数量 | 25 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...105°C |
