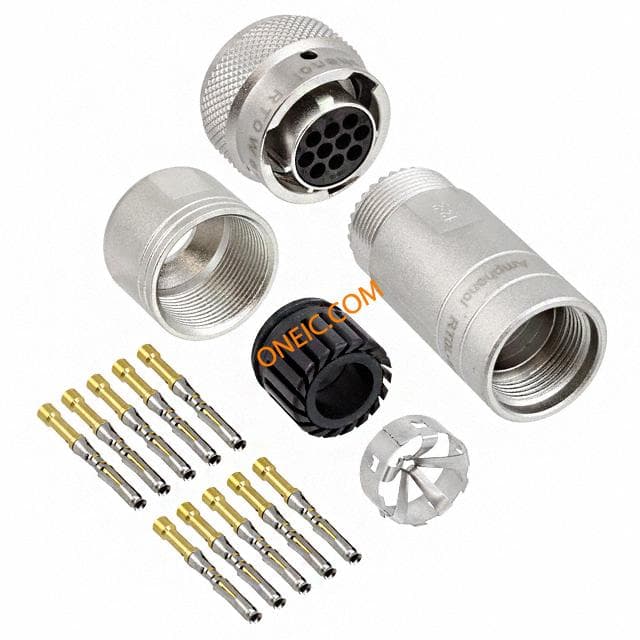

RT0W01210PNH-K
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 889-1305 | Standard Package | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 150VAC/DC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Wire Gauge | 20 |
| Orientation | N (Normal) | Shell Style | Wall Mount |
| Termination | Crimp | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Connector Style | Receptacle |
| 1st Contact Gender | Pin | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | Contact Finish Thickness | Flash |
Product Info
| Product Type | Connector Kits | ||
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Connector Kits
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
