Business
| Product | Housings | Part # Aliases | 14R5600 427-0015 |
| Product Category | Automotive Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Breakdown | :1500V | Current Rating (Max) | 13 A |
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Color | Gray | Depth | 30.8mm |
| Width | 18.2mm | Weight | 0.004 |
| Material | :Thermoplastic | Packaging | Bulk |
| Wire Gauge | 14-20 AWG | Contact Type | Female Socket |
| Housing Color | Gray | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Nickel |
| Fastening Type | Latch Lock | Mounting Style | Cable |
| Number of Rows | 2 | Locking Feature | lock |
| Material Finish | :- | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 18.2 mm |
| Package Quantity | 900 | Primary Material | Industrial |
| Connector - Cable | plug | Color - Connectors | grey |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | ||
Product Info
| Spg | 900 | Note | Contacts Not Provided |
| Type | Power | Gender | PL |
| Series | AT | Manufacturer | AT Series |
| Adapter Series | AT | Number of Ports | 1 Port |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
Similar Parts
A114017
amphenol-sine systems
$0.2761
Details

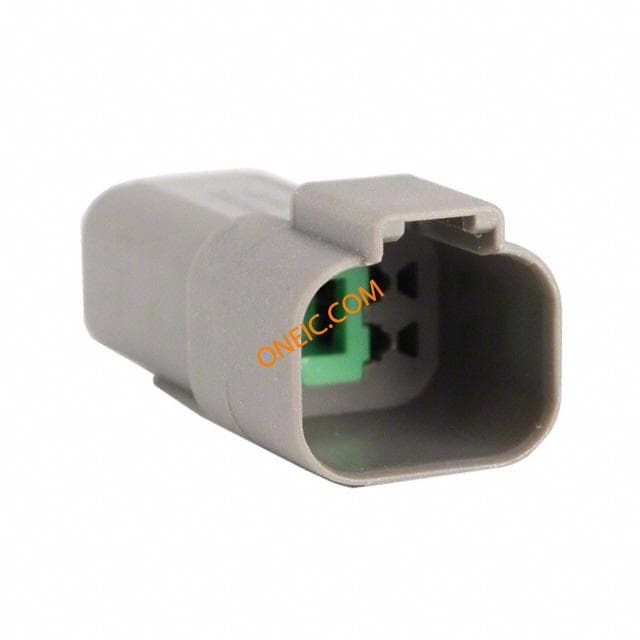

AT04-4P
amphenol-sine systems
$3.8672
Details
AT04-4P-EC01
amphenol-sine systems
$5.7120
Details
AT62-14-0122
amphenol-sine systems
$1.9353
Details
AT62-210-1231
amphenol-sine systems
$8.2960
Details
65-54757
amphenol-sine systems
$3.5163
Details
AT62-16-0622
amphenol-sine systems
$1.5327
Details
AT62-16-0122
amphenol-sine systems
$1.5769
Details

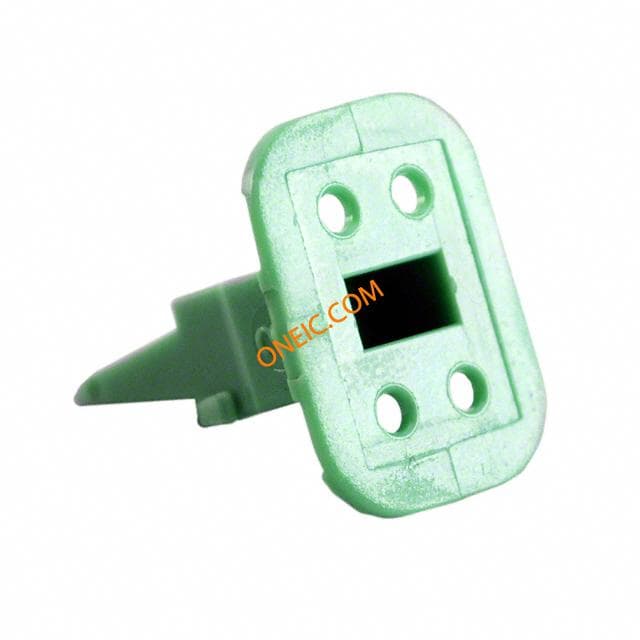

AW4S
