MA1EAP1200
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 889-1071 | Part # Aliases | 14R6999 ASDA020 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 10 A | ||
Mechanical
| Weight | 0.0863 | Diameter | 25.8 |
| Packaging | Bulk | Cable Exit | No |
| Orientation | P | Shell Style | Plug |
| Contact Size | 1.0mm | Contact Type | 12Signal |
| Mounting Type | Cable Mount | Connector Type | Plug for Male or Female Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Cable | Insertion Angle | :- |
| Material - Body | :Zinc | Contact Material | Brass |
| Length - Overall | 53.9 | Termination Style | Pin |
| 1st Contact Gender | PIN | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | :- |
| Shell Material, Finish | Zinc Die Cast | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | PL | Series | M23 |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
MA1JAP1200
amphenol-sine systems
$25.0920
Details
MA1LAP1200
amphenol-sine systems
$24.7520
Details
MA1RAP1200
amphenol-sine systems
$85.3000
Details
MA3CG-S1
amphenol-sine systems
$22.5393
Details
MA4FSR-A10.5
amphenol-sine systems
$87.3300
Details
MA4FSR-A8.5
amphenol-sine systems
$62.6280
Details
SC000035
amphenol-sine systems
$6.1285
Details
MA4FSR-A12.8
amphenol-sine systems
$117.3788
Details
MA3CG-S3
amphenol-sine systems
$24.5528
Details
MA3CG-S2
amphenol-sine systems
$18.1200
Details
SC000013
amphenol-sine systems
$3.1729
Details
SC000044
amphenol-sine systems
$1.5912
Details

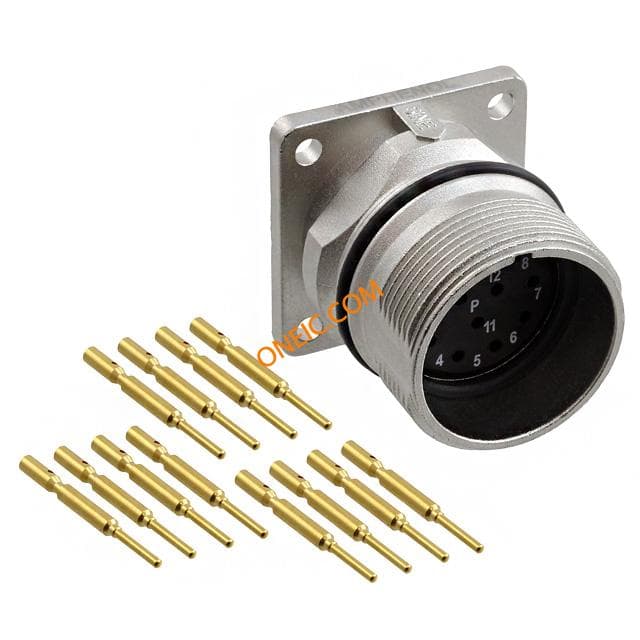

MA1LAP1200-KIT
