MB1JJN0900
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 889-1099 | Part # Aliases | 14R7027 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
Electrical
| Voltage - Test | 6000V | Voltage Rating | 630 V ac/dc |
| Current Rating (Max) | 30A | Current - Short Circuit (Isc) | 30A |
Mechanical
| Weight | 0.0402 | Diameter | 25 mm |
| Material | Zinc Die-Cast | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Plug | Contact Form | 9Signal |
| Contact Size | 1.0mm, 2.0mm | Contact Type | Crimp |
| Mounting Type | Cable Mount | Connector Type | Receptacle for Male Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Cable | Insertion Angle | :- |
| Material - Body | :Zinc | Contact Material | Brass |
| Termination Style | Crimp | 1st Contact Gender | Male |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Size - Insert | :- | Shell Material, Finish | Zinc Die Cast |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | M23 |
| Features | Shielded | Manufacturer | B Series |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
MB1CKN0900
amphenol-sine systems
$35.4940
Details

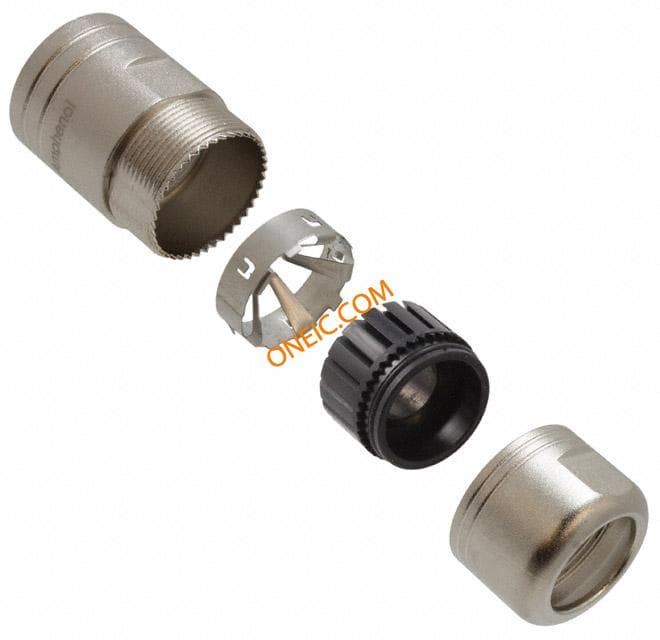

MB3CG-S1
amphenol-sine systems
$55.5376
Details
MB3CG-S2
amphenol-sine systems
$18.1200
Details
MB4FSR-B14.5
amphenol-sine systems
$16.5240
Details
MB4FSR-B17
amphenol-sine systems
$21.3520
Details

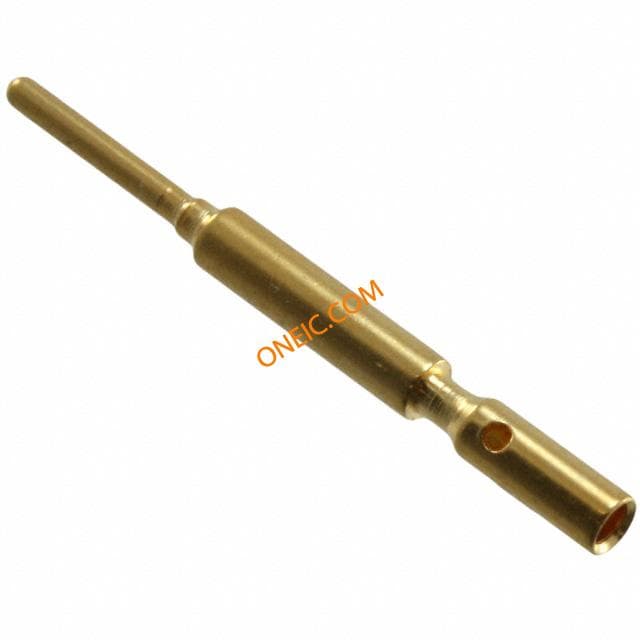

SC000035
amphenol-sine systems
$6.1285
Details

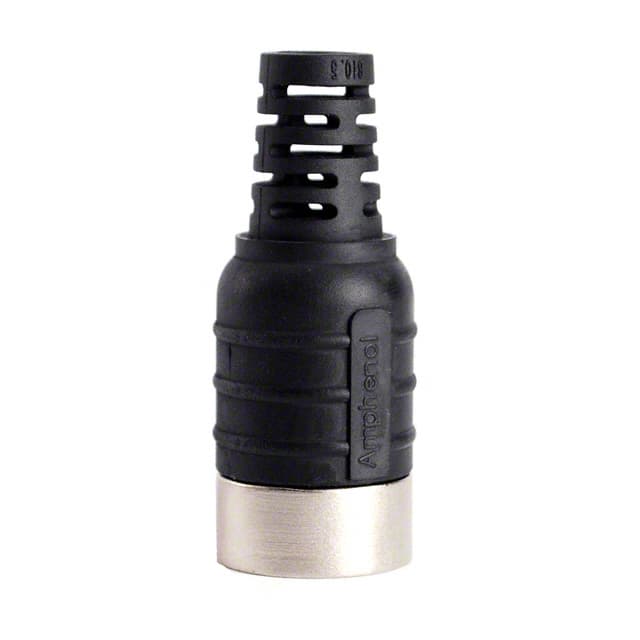

MB4FSR-B10.3
amphenol-sine systems
$16.3751
Details
MB3CG-S3
amphenol-sine systems
$28.4920
Details

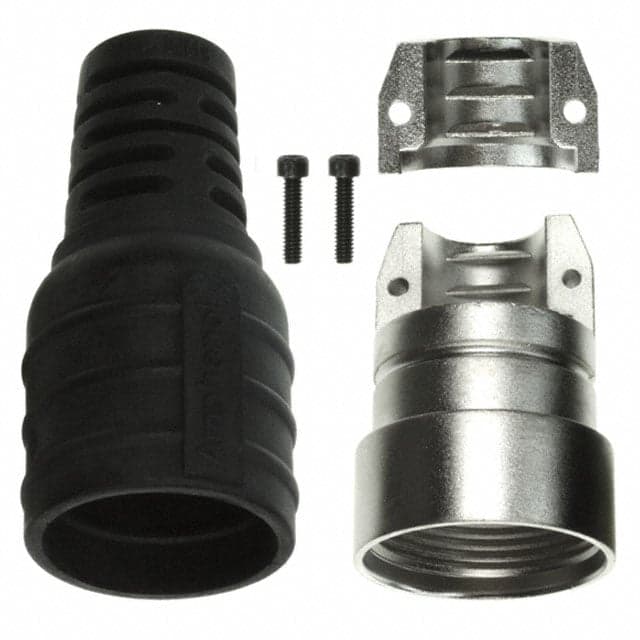

MB4FSR-B12.5
