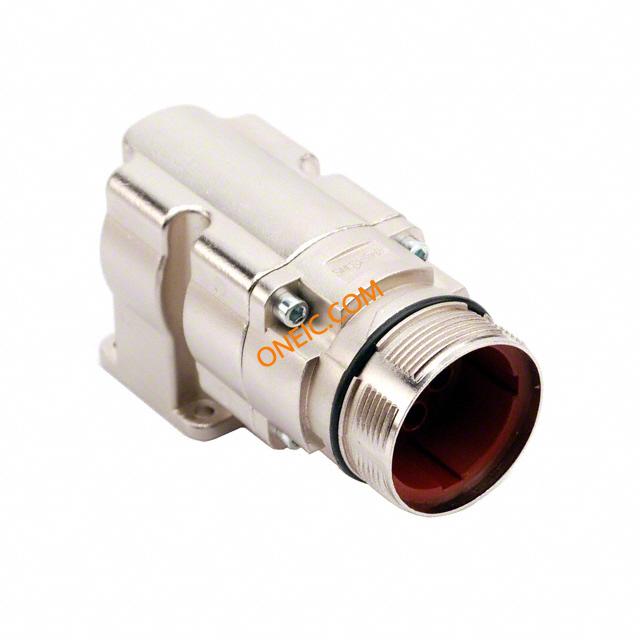

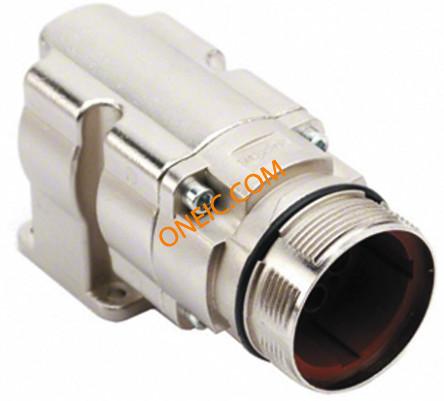

MC1NJN0600
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 889-1128 | Part # Aliases | 14R7047 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
Electrical
| Voltage Rating | 630 V ac/dc | Current Rating (Max) | 75A |
Mechanical
| Depth | 45 mm | Height | 55 mm |
| Weight | 0.534 | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Form | 6Signal | Contact Size | 2.0mm, 3.6mm |
| Contact Type | 6Signal | Mounting Type | Through Hole |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Cable |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Length - Overall | 101 mm |
| Termination Style | Crimp | 1st Contact Gender | RCP |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | :- | Shell Material, Finish | Zinc Die Cast |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | M40 |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- MC1NJN0600.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
