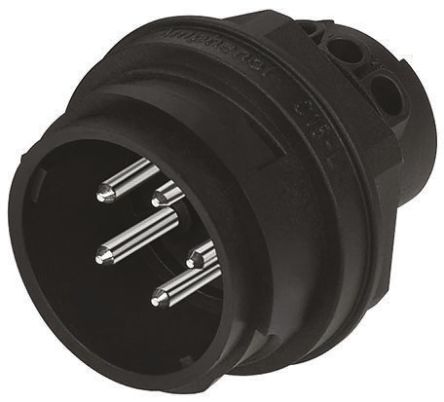

C016 20P004 8002
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85366990 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | :600V | Voltage - Breakdown | :6000V |
| Current Rating (Max) | :41A | ||
Mechanical
| Weight | 0.066 | Packaging | Bulk |
| Wire Gauge | :2.5mm² | Orientation | Keyed |
| Termination | Screw | Mounting Type | Panel Mount, Bulkhead; Through Hole |
| Connector Type | :Circular Industrial | Contact Finish | :Silver |
| Fastening Type | Bayonet Lock | Insertion Angle | :- |
| Material - Body | :Nylon 6.6 (Polyamide 6.6) | Contact Material | :Copper |
| 1st Contact Gender | :Pin | Number of Contacts | :5 |
| Contact Termination | :- | Number of Positions | 5 (4 + PE) |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide (PA66), Nylon 6/6 |
| Wire Gauge or Range - mm2 | :6mm² | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :20mm | ||
Product Info
| Type | Jam Nut | Gender | Male |
| Series | * | ||
Environmental
| Mating Cycles | :250 | NEMA Frame Size | :IP65 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | :100°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- C16-3,C16-L Series Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
