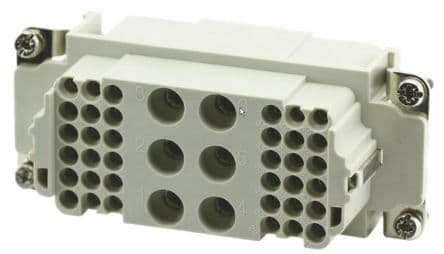

C146 10A042 500 13
| Manufacturer | |
| Description | PIN CONNECTOR 42POS INSERT MALE 6+36POS+1GND CRIMP Amphenol 8行 6/36针 42+PE极 插头 电源连接器 , 电缆安装 |
| Category |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 690V | ||
机械参数
| 尺寸 | E16 | 颜色 | Gray |
| 包装方式 | Bulk | 方向 | 直 |
| 安装类型 | 电缆安装 | 连接器类型 | Insert without Contacts |
| 接触镀层 | 金，银 | 排数 | 8 |
| 触头材料 | 铜合金 | 壳体材料 | Polycarbonate (PC) |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 触点数 | 6/36 | 位数 | 6+36+Ground |
产品信息
| 类型 | K 型插件 | 连接器性别 | Male |
| 极性 | 42+PE | 测量范围 | Heavy Mate |
| 基础产品编号 | C146 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
