T 3277 500
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | T3277500 | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant Part | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 300V | Number of Poles | 3 |
| Current Rating (Max) | 5A | Current Rating - Appliance Inlet | 5 |
| Voltage - Protection Level (VP) (2416) | IP 40 | ||
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder Cup | Mounting Type | Panel Mount, Snap-In |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Bayonet Lock | Locking Feature | Bayonet locking |
| Contact Material | Ag | Housing Material | Thermoplastic |
| Termination Style | Soldering Connection | Number of Positions | 3 |
| Shell Size - Insert | DIN (180 Degree) | 1st Connector Gender | Female |
| Shell Material, Finish | Die Cast, Nickel Plated | ||
Product Info

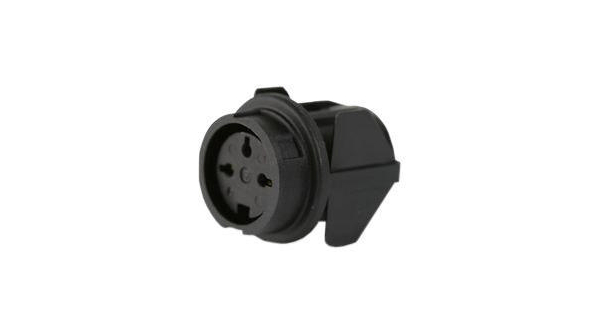

| Design | Panel-mount female receptacle | Series | C 091 B |
| Features | Shielded | Main Purpose | Shielded |
| Connection Method | 0.5 | Output Configuration | Panel Mount, Snap-In |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
