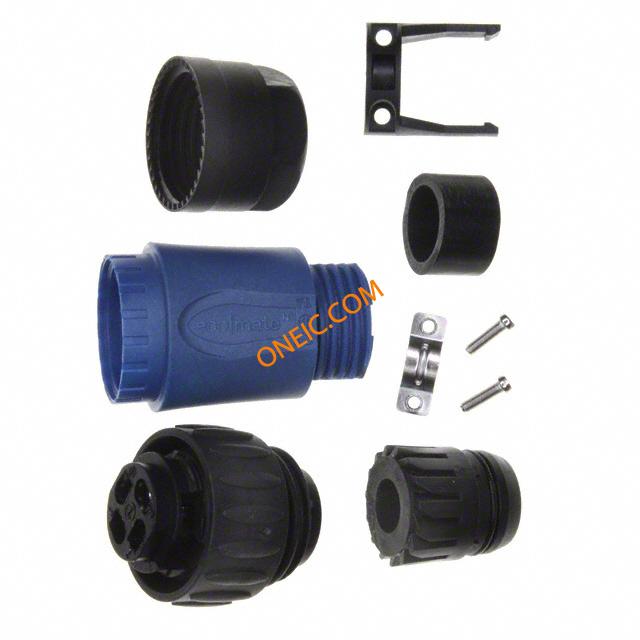

C016 20H003 110 10
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE MALE STRT BLUE SCW SILV INT ST RELF Conn Circular M 4 POS Screw ST Cable Mount 4 Terminal 1 Port 03P+PE MALE CABLE CON. C16-M CONN MALE PLUG 3+PE SILVER BLUE CIRCULAR, PLUG, 3+PE WAY, CABLE connector, plastic circ, str male cable conn, 3+gnd silver ptd cont, screw term, blue Connector: circular; plug; with cable clamp; male; PIN:4; 400V; 16A Cable plug 3+PE, C016 20H003 110 10, Amphenol |
| Category |
商业参数
| 最小起订量 | 50 | 单位包装 | 50 |
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85389099 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | VDE,UL,CSA |
| 保护特性 | 67 | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 400V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 击穿电压 | :6000V |
| 最大额定电流 | 16A | 绝缘电阻 | :10Mohm |
| 连接器类型 - 电压输入 | with cable clamp | ||
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 直径 | 30 mm | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | 20-14 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 触点形式 | 3Signal/1Ground |
| 触头类型 | 3Signal/1Ground | 安装类型 | Cable Mount |
| 释放力 | :15N | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Straight |
| 连接器用途 | Threaded | 插入角度 | :- |
| 插入力 | :15N | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | 73 mm |
| 包装数量 | 50 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | MALE |
| 第一触头极性 | M | 连接器颜色 | :Blue / Black |
| 触点数 | 4 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 3 + 1 Ground (PE) | 线规或范围 - mm² | :2.5mm² |
| 触点材料 - 镀层 | -40 TO 100 | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 3+PE | ||
产品信息
| SPG | 50 | 类型 | Circular |
| 连接器性别 | PL | 系列 | ECOMATE |
| 产品特性 | Cable Clamp, Strain Relief | 匹配码 | C01620H00311010 |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 适配器系列 | ECOMATE (C016) | 单元数量 | 1 |
| 标准交期 | 12 weeks | 射频系列/标准 | C016 |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | SCREW°C | ||
