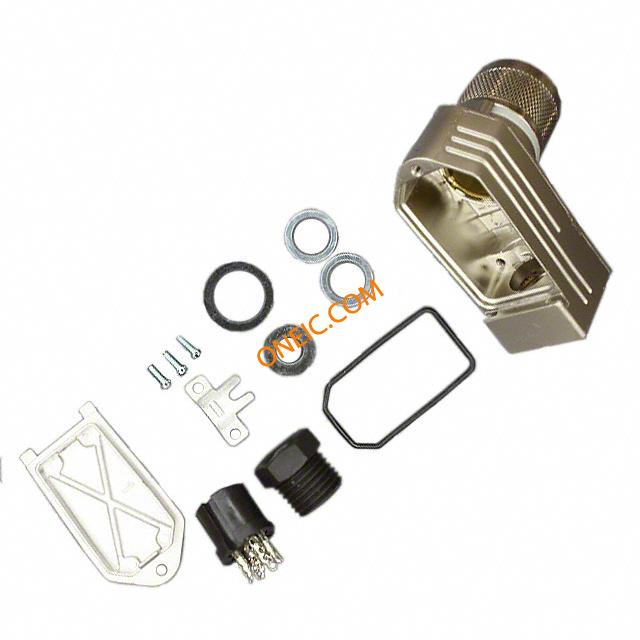

C091 31F008 100 2
| Manufacturer | |
| Description | Circular DIN Connectors FMale 8 Pin R/A cable CONN CIR FMALE 8POS R/A CABLE CONN CIR FMALE 8POS R/A INLINE connector, circ din, rt angle female cable conn, 8din silver pltd socket cont, ip67 |
| Category |
商业参数
| 零件号别名 | 100 2 31F008 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | UL Recognized |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 100 V | 供电电压 | DIN |
| 最大额定电流 | 5 A | ||
机械参数
| 包装方式 | Bulk | 出线方向 | Internal |
| 导线线规 | 20-26 | 方向 | Keyed |
| 端接方式 | Solder Cup | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line), Right Angle | 外壳镀层 | Nickel |
| 行程角度 | Right | 电缆直径 | 4-6 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 壳体材料 | Die Cast | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 介电材料 | Thermoplastic |
| 位数 | 8 | 外壳尺寸-插件 | DIN (270 Degree) |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | ||
产品信息
| 类型 | Cable Socket | 产品特性 | Shielded, Strain Relief |
| 制造商全称 | C091-D Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091D | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
Documents & Media
相关型号
C091 11W008 000 2
amphenol
Conn Circular M 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PNL MNT PIN CRIMP Circular DIN Connectors MALE RECEPTACLE 8 WAY

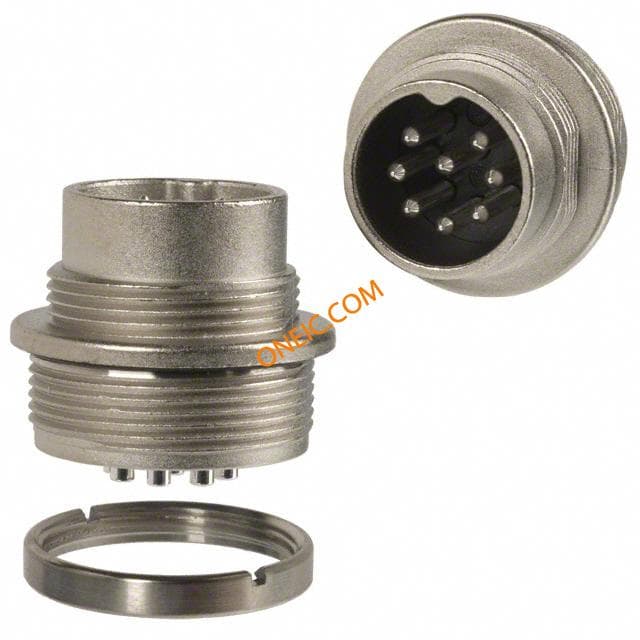

C091 31W008 100 2
amphenol
Conn Circular M 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN MALE RCPT 8POS FRONT MT Circular DIN Connectors 8P DIN PANEL MALE connector, circular din, male panel recept, front mt, 8 din silver plt pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 8-pin Poles=8, C091 31W008 100 2, Amphenol

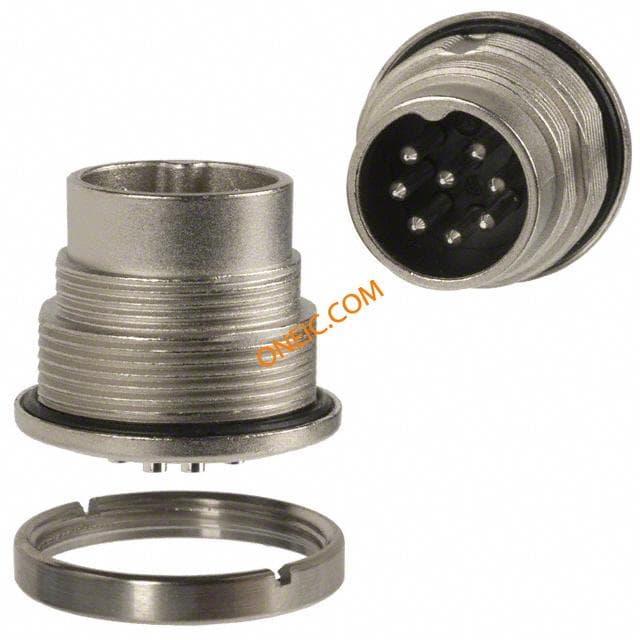

C091 31C008 100 2
