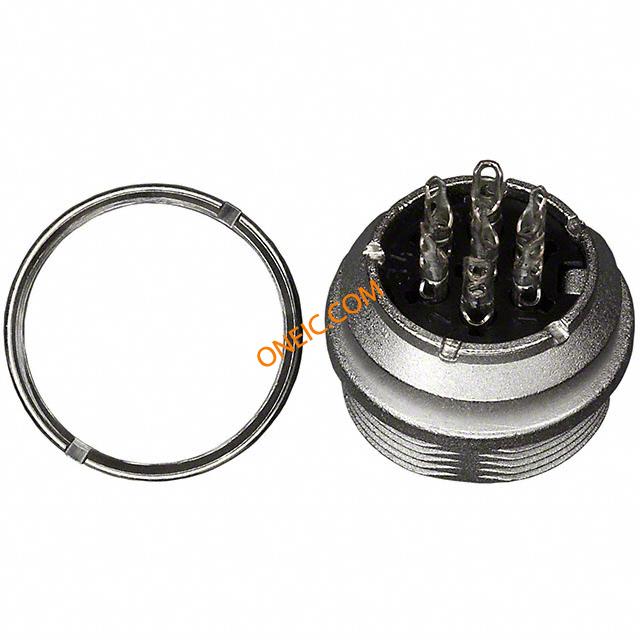

点击放大查看
C091 31G007 100 2
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31G007 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Outline | 20mm | Packaging | Bulk |
| Cable Exit | Yes | Shell Size | 20mm |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder Cup | Contact Type | Socket |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Screw On | Housing Material | Metal |
| Primary Material | DIN | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 7 | Dielectric Material | Thermoplastic |
| Number of Positions | 7 | Shell Size - Insert | DIN |
| Shell Material, Finish | Die Cast, Nickel Plated | Static Discharge Shielding | 是 |
Product Info
| Type | Panel Socket | Gender | Female |
| Series | C 091 D | Features | Shielded |
| Manufacturer | C091-D Series | Product Type | Connectors |
| RF Family/Standard | C091D | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- C091 A,B,D Series Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
