点击放大查看

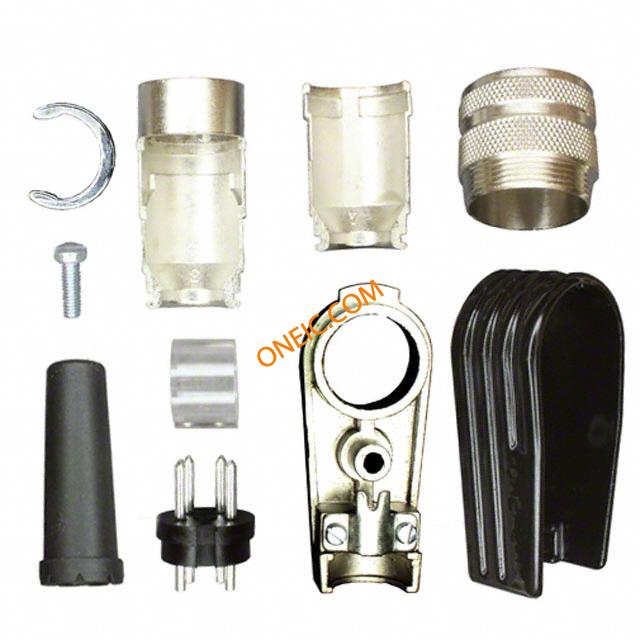

T 3300 005
| Manufacturer | |
| Description | Circular DIN Connectors 4 Pin Male;R/A Cable Mount CONN MALE 4POS CABLE MNT R/A PLUG, FREE, R/A, C091A, 4WAY CONN MALE 4POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 4iec silver plt solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40 Cable plug angled series C091A 4-pin Poles=4, T 3300 005, Amphenol |
| Category |
商业参数
| 零件号别名 | 005 3300 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | UL E63093 | 海关税号 | 85389099 |
| 认证机构标志 | UL Recognized/IEC | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0.053 | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20 AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line), Right Angle | 外壳镀层 | Nickel |
| 行程角度 | Right | 电缆直径 | 4 mm to 6 mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | for cable | 封装形式 | Metal |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :- |
| 触头材料 | :- | 壳体材料 | Die Cast |
| 主要材料 | DIN | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Solder | 介电材料 | Thermoplastic |
| 位数 | 4 | 外壳尺寸-插件 | DIN (210 Degree) |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | 触点材料 - 镀层 | silver plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | DIN EN 60130-9 |
产品信息
| 类型 | Cable Plug | 连接器性别 | :Plug |
| 系列 | :C091A | 产品特性 | Shielded, Strain Relief |
| 制造商全称 | C091-A Series | 产品子类型 | Connectors |
| 适配器系列 | C091A | 单元数量 | 1 |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
