点击放大查看

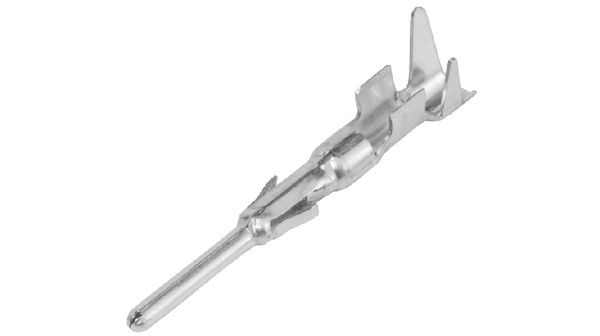

VN01 025 0010 101
| Manufacturer | |
| Description | Circular DIN Connectors M Crimp Contact;16- 14 AWG CONTACT PIN 14-16 AWG SLVR CRIMP connector component;crimp pin contact;silver pltd;for 1.50-2.50mm2(16-14awg)wire Heavy Duty Power Connectors M Crimp Contact;16- 14 AWG CONTACT, PIN, 1.5 - 2.5MM2, SILVER connector component, crimp pin contact, silver pltd, for 1.50-2.50mm2(16-14awg)wire Crimp contact Stamped, Male, VN01 025 0010 101, Amphenol |
| Category |
商业参数
| 其他名称 | VN010250010101 | 零件号别名 | 06R3624 |
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 电容 | 2 pF (Min.) (contact), 3.2 pF (Max.) (Housing) | 接触电阻 | 5 Milliohms (Max.) |
| 最大额定电流 | :20A | ||
机械参数
| 重量 | 0.086 | 镀层 | Silver |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 14-16 AWG | 重量（g） | 10.80000 |
| 触头类型 | :Stamped | 插针或插孔 | Pin |
| 接触镀层 | :Silver | 触头材料 | :Brass |
| 第一触头极性 | :Pin | 接触件端接 | Crimp |
| 中心触点镀层工艺 | Ag | 线规或范围 - AWG | :16AWG |
产品信息
| 类型 | Stamped | 连接器性别 | Male |
| 系列 | :Heavy Mate | 产品子类型 | Contacts |
| 附件类型 | Contacts | 适用产品/相关产品 | :Heavy Duty Module Connectors |
环境参数
| 机械寿命 | >≥ 500 Mating Cycles | ||
Documents & Media
相关型号
TA 0500
amphenol
Crimping Tools For Stamped Contacts Hand Tools Hand crimp for single contacts TOOL CRIMP SHORT HANDLE crimp tool C16-3& ECOmate less dies/loc CRIMP TOOL, TA, 2.5MMSQ. tool, hand crimp, less crimp die set and contact locators, for eco/mate, c16-3 cont Crimping pliers without dies, TA 0500, Amphenol Amphenol 压接工具
C016 10H014 003 1
amphenol
Conn Circular M 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Circular DIN Connectors MALE CABLE CONNECTOR 14+PE CONN PLUG 14+PE CABLE PIN CRIMP Male cable connector 14+PE, C016 10H014 003 1, Amphenol
TA 0007 146 0003
Amphenol Tuchel
Crimpers CRIMP LOCATOR 16-14 AWG TOOL HAND CONTACT LOCATOR tool component, contact locator for ta-0000-141, stamped contacts, 16-14 awg wire
FG 0200 146 1
Amphenol Tuchel
Hand Tools REMOVAL TOOL REMOVAL TOOL C16-3 insertion/extraction tool 3 INSERTION TOOL tool, contact extraction, for vn01/vn02-025 in eco/mate, c16-3, and c146 series Extraction tool for crimp contacts, FG 0200 146 1, Amphenol Amphenol C 16-3 系列 插入和拔插件组合工具
TA 0000 141
Amphenol Tuchel
Hand Tools CRIMP DIE 16-14 AWG TOOL HAND CRIMP-SET 16-14AWG Crimp die set for stamped cts, 16-14awg CRIMP DIE SET, TA, 14-16AWG tool component, crimp die set, for stamped contacts, for 16-14 awg wire DIESET,STPDCTS,16-14AWG Crimping dies, TA 0000 141, Amphenol Amphenol TA 系列 压接工具模具 , 16 → 14 AWG 线规格, Open Crimp Barrel
