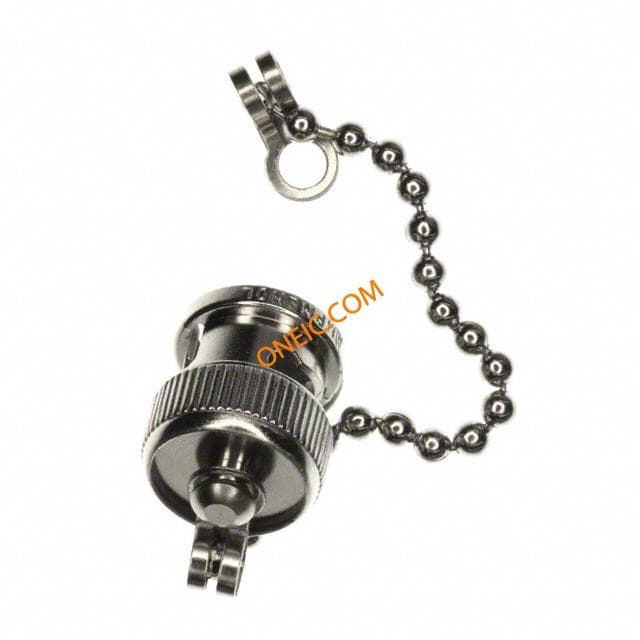

点击放大查看
031-10-75RFXG2
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Impedance (Max) (Zzt) | 75 Ohm | Connector - Voltage Input | Solder Cup |
Mechanical
| Packaging | Bulk | Body Finish | Nickel |
| Termination | Solder | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Plating - Body | Nickel | Connector Style | BNC, RFX |
| Contact Material | Phosphor Bronze | Length - Overall | 30 mm |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polyamide (PA), Nylon | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Exterior Housing Color | Silver |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Straight |
Product Info
| Type | BNC | Gender | F |
| DELETED | Compliant | Features | Isolated |
| Main Purpose | Isolated | Connection Type | Wire |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Ingress Protection | Solder | Operating Temperature | -55°C ~ 85°C |
Documents & Media
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- C031-10-75RFXG2.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
