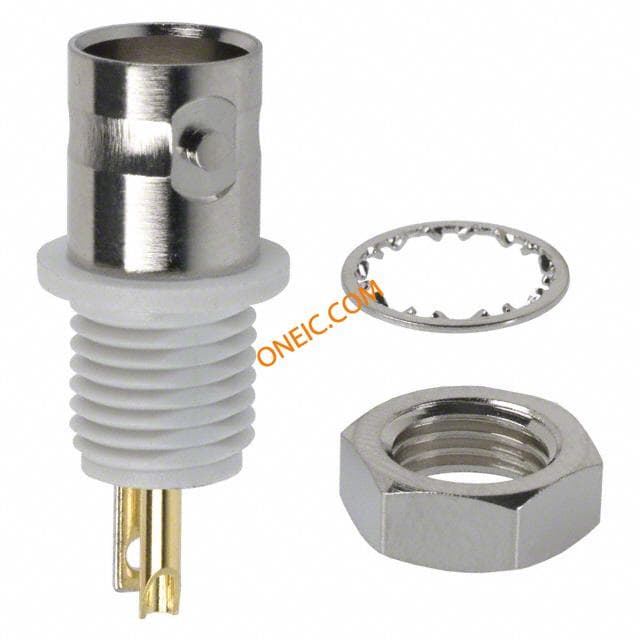

31-10-RFX
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | :RG58, RG59, RG179, RG316 | Body Finish | Nickel |
| Termination | Solder Cup | Weight (g): | 10.40000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount | Connector Type | Jack, Female Socket |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Connector Style | BNC, RFX | Contact Material | Beryllium Copper|Phosphor Bronze |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polyamide (PA), Nylon | Center Contact Plating | Silver |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight Bulkhead Jack |
Product Info
| Type | BNC | Gender | RCP |
| Features | Isolated | Connection Type | Wire |
| RF Family/Standard | 031-10-RFX | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- BNC.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
