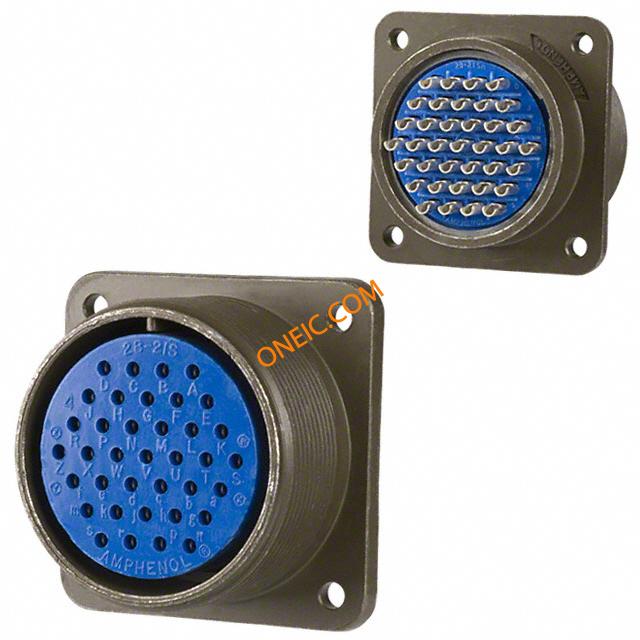

97-3102A-28-21S

Name: 97-3102A-28-21S
SKU: 97-3102A-28-21S

Business

Standard Package

Bulk

RoHS	Contains lead / RoHS non-compliant	SVHC	:No SVHC (19-Dec-2012)
Tariff No	85369010	Approval Agency	:MIL Spec
Approval Agency Marking	UL/CSA

Voltage Rating	500VAC, 700VDC	Voltage - Working	:700V
Voltage - Breakdown	:2000V	Current Rating (Max)	13A

Width	:50.8mm	Length	:34.11mm
Weight	0.046	Packaging	Bulk
Cable Exit	Solid	Shell Size	28
Wire Gauge	:22AWG	Orientation	N (Normal)
Shell Style	box mount receptable	Termination	Solder
Contact Type	socket contacts	Mounting Type	Box Mount
Angle of Throw	Straight	Connector Type	Amphenol 97 Series - Standard Cylindrical Connector - solder type
Contact Finish	Silver	Fastening Type	Threaded
Housing Finish	Olive Drab Cadmium	Package / Case	Metal
Shell Material	solid backshell	Connector Usage	Threaded
Insertion Angle	28-21	Material - Body	:Aluminium
Contact Material	:Copper	Housing Material	Aluminum Alloy
Primary Material	5015 Commercial	1st Contact Gender	:Socket
Number of Contacts	:37	Panel Cutout Shape	:39.67mm
Contact Termination	:Solder	Dielectric Material	Diallyl-Phthalate
Number of Positions	37	Shell Size - Insert	28-21
Mounting Hole Diameter	:3.95mm	Shell Material, Finish	Aluminum, Olive Drab Cadmium Plated
Contact Layout, Typical	37#16	Wire Gauge or Range - AWG	:16AWG
1st Connector Mounting Type	:Panel	Diameter - Outside, Non-Expanded	:1.4mm
