点击放大查看

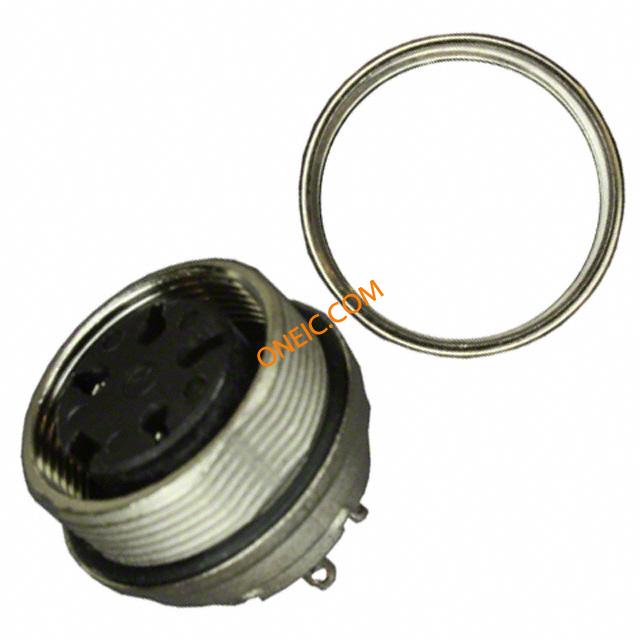

C091 31G004 100 2
| Manufacturer | |
| Description | Conn Circular F 4 POS Solder ST Panel Mount 4 Terminal 1 Port CONN FEMALE RCPT 4POS REAR MT C091D Rear Panel Mount 4 way skt Solder Circular DIN Connectors Female 4 Pin Rear MT connector, circ din, female panel recept, rear mt, 4iec silver pltd socket cont, ip67 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 100 2 31G004 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | UL Recognized |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 包装方式 | Bulk | 出线方向 | Yes |
| 外壳尺寸 | 20mm | 导线线规 | 20 AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触头类型 | Socket |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 封装形式 | Metal |
| 连接器用途 | Screw On | 壳体材料 | Metal |
| 主要材料 | DIN | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 4 |
| 介电材料 | Thermoplastic | 位数 | 4 |
| 外壳尺寸-插件 | DIN (210 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | C 091 D | 产品特性 | Shielded |
| 制造商全称 | C091-D Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091D | ||
环境参数
| 密封等级 | IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
