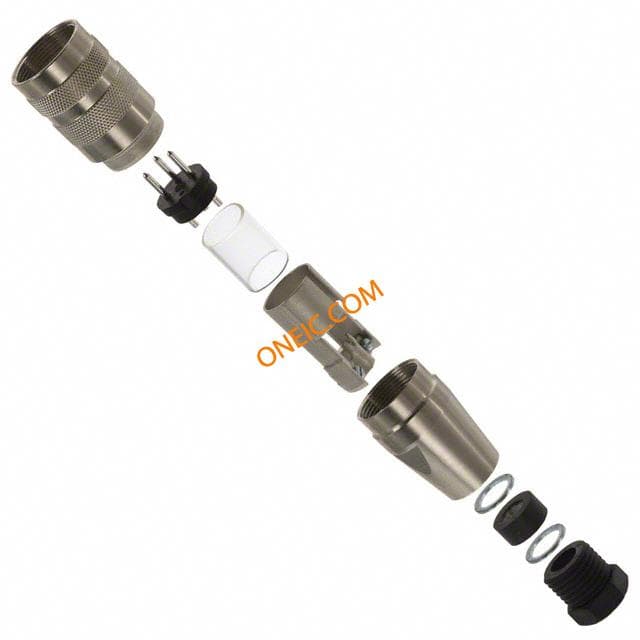

C091 31N003 100 2
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31N003 34B7608 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300 V | Voltage - Supply | DIN |
| Current Rating (Max) | 5 A | ||
Mechanical
| Weight | 0.009 | Diameter | 20 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 3Signal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Panel |
| Package / Case | Metal | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :- |
| Housing Material | Die Cast | Length - Overall | 17.6 |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Dielectric Material | Thermoplastic | Number of Positions | 3 |
| Shell Size - Insert | DIN (180 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Circular | Gender | RCP |
| Series | :C 091 D | Features | Shielded |
| Manufacturer | C091-D Series | Product Type | Connectors |
| RF Family/Standard | C091D | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 40_c091_abd_e.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
