D38999/26FB35PN
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 91-552042-35P | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 11 |
| Wire Gauge | 28,26,24,22 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 13#22D | Contact Type | pin contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 11-35 | Material - Body | :Aluminium |
| Shell Size, MIL | B | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 13 |
| Shell Size - Insert | 11-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200°C |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
D38999/24FB35SN
amphenol
$229.4320
Details
D38999/20FB35SN
amphenol
$230.9790
Details

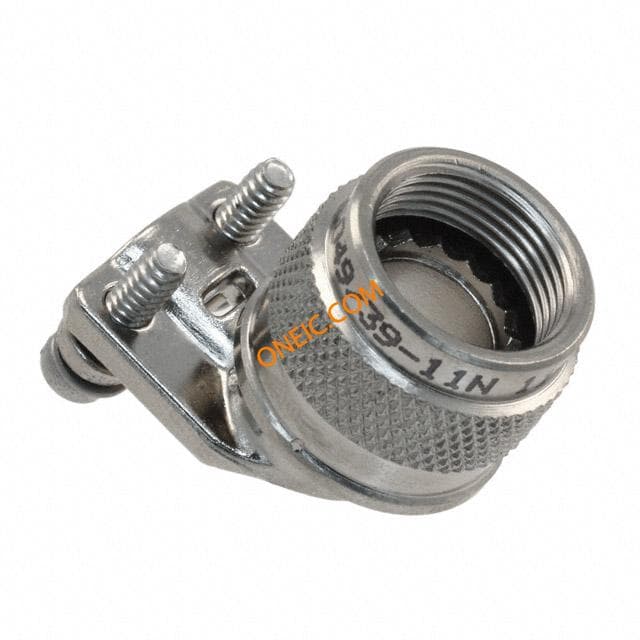

A850493911N
Amphenol PCD
$91.9330
Details

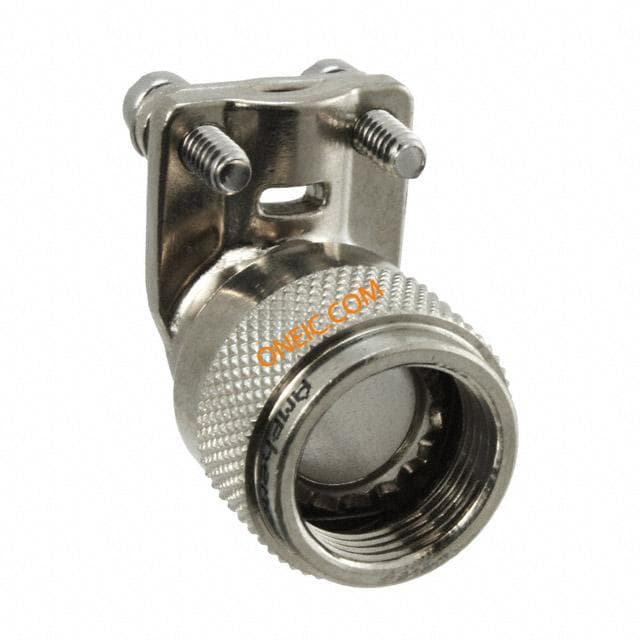

A8504939S11N
Amphenol PCD
$133.4397
Details
A850493811N
Amphenol PCD
$52.9040
Details

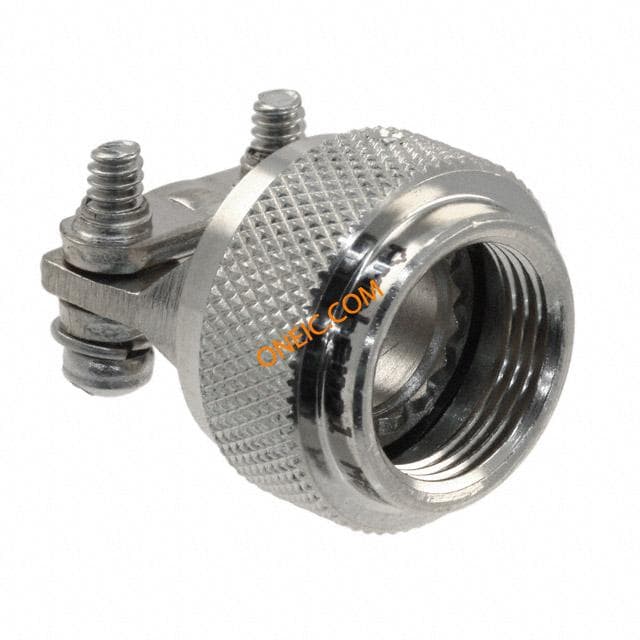

A8504938S11N
