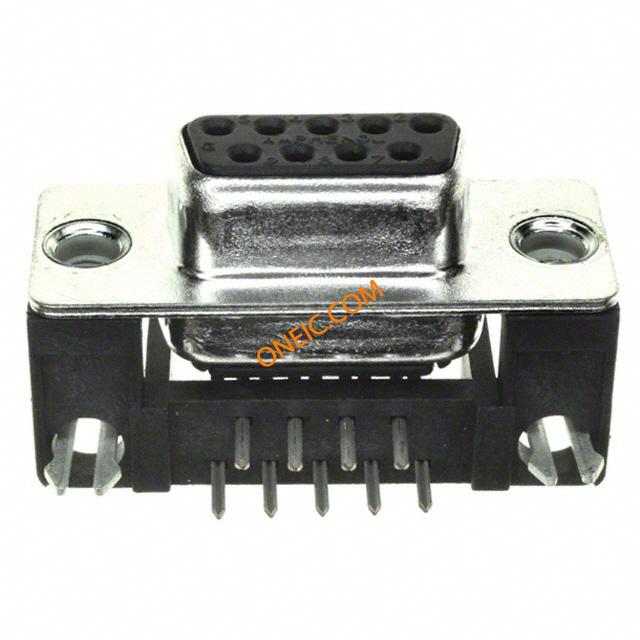

FCE17E09SA450
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 60 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Black | Depth | 18.64 |
| Pitch | 2.74 | Height | 12.55 |
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (4-40) | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 30.81 |
| 1st Contact Gender | SKT | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 15µin (0.38µm) | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Type | Filtered D-Sub | Features | Board Lock, Filter |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
