H4CMC6DI
| Manufacturer | |
| Description | Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Individual CONN H4 MALE HALF 10AWG/6MM2 Solar Connectors / Photovoltaic Connectors SOLAR H4 HELIOS MALE 10 AWG PLUG, HELIOS H4, 6MMSQ. Conn.;Solar;Male;Helios4H;10AWG;Cable;TUVandULApproved |
| Category |
Business
| Product | Solar Connectors | Tradename | Helios |
| Part # Aliases | PV-100506-M PV-200045-I | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 44 |
| Voltage - Input (Min) | 1000V | Current - Reverse Leakage @ Vr | 44 |
Mechanical
| Weight | 0.02 | Packaging | Individual |
| Wire Gauge | 10 | Termination | Crimp |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | :1 |
| Contact Material | Copper | Housing Material | Polycarbonate |
| Primary Material | Solar | Termination Style | Crimp |
| Number of Contacts | 1 | Contact Termination | :Crimp |
| Wire Gauge or Range - AWG | 10 | Wire Gauge or Range - mm2 | :6mm² |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Power | Gender | M |
| Series | :HELIOS H4 | Features | 10 AWG |
| Function | Solar Connector | Coded, Keyed | Minus |
| Manufacturer | HeliosH4 | Number of Ports | 1 |
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Similar Parts
PV-670508-000
amphenol
Crimp Tool For 2,5SQMM-6SQMM Crimpers SOLAR H4 HELIOS CRIMP TOOL CRIMP TOOL H4 10-14 AWG H4 Crimp Tool CRIMP TOOL H4CRIMPTOOLFORHELIOSSOLARCONNECTORS
PV-670803-000
amphenol
Wrench/Disconnect/Assembly Tool For Using With Connector Power WRENCH TOOL H4 H4 Wrench Tool Wrench Tool H4 WRENCH TOOL FOR HELIOS SOLAR CONNECTORS

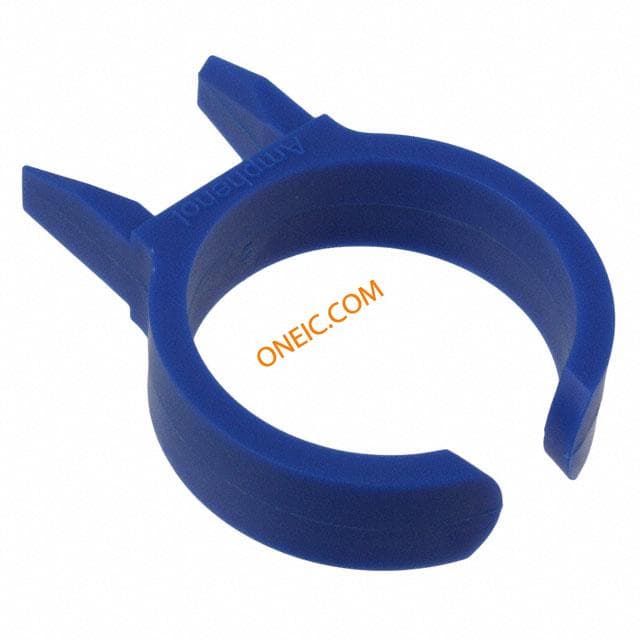

PV-670804-000
amphenol
Unlocking Ring Tool For Using With Connector Power RING TOOL H4 H4 Unlocking Ring Tool H4 RING TOOL FOR HELIOS SOLAR CONNECTORS Amphenol 解锁环工具

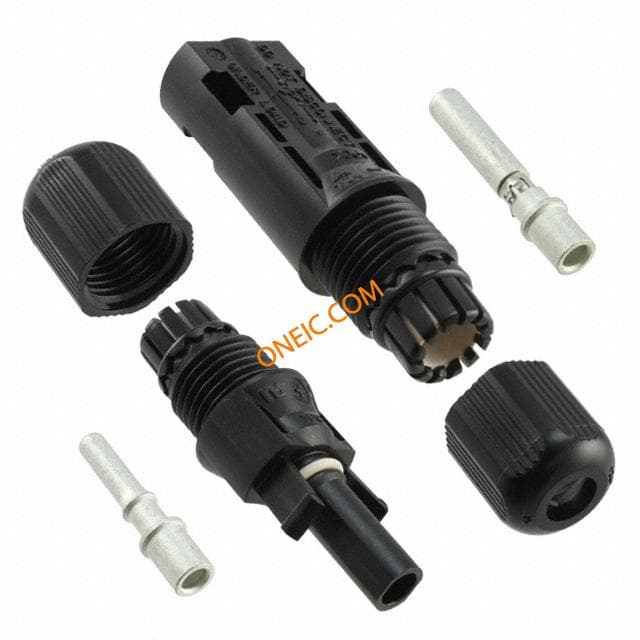

H4CPC6DI
amphenol
Conn Power 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Individual CONN H4 MATED PAIR 10AWG/6MM2 Solar Connectors / Photovoltaic Connectors SOLAR H4 HELIOS MATED PAIR 10 AWG PLUG & SOCKET CONNECTOR, 1POS Conn.;Solar;MatedPair;Helios4H;10AWG;Cable;TUVandULApproved

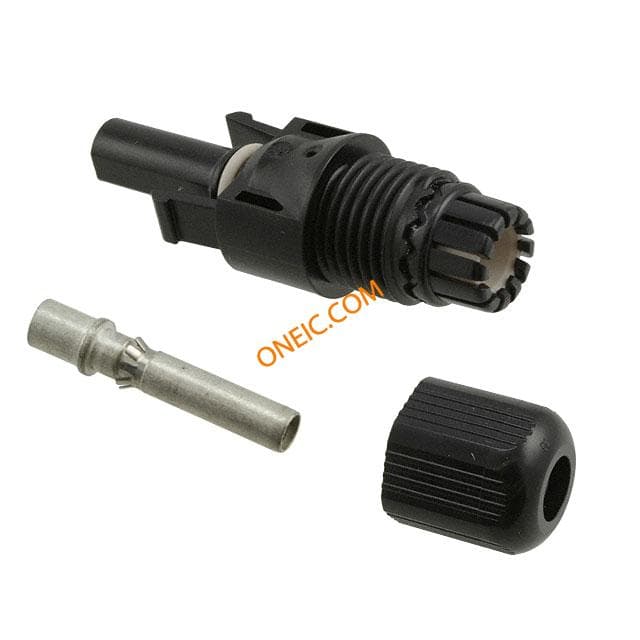

H4CFC6DI
amphenol
Conn Power F 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Individual CONN H4 FEMALE HALF 10AWG/6MM2 Solar Connectors / Photovoltaic Connectors SOLAR H4 HELIOS FEMALE 10 AWG SOCKET, HELIOS H4, 6MMSQ. Conn.;Solar;Female;Helios4H;10AWG;Cable;TUVandULApproved

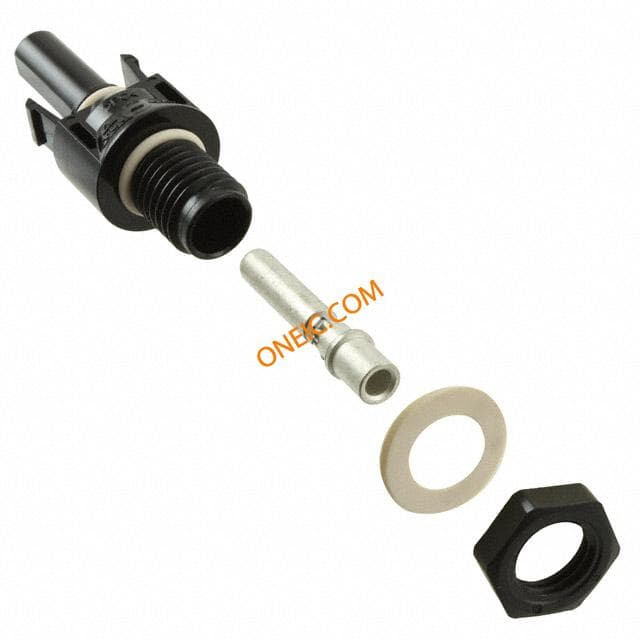

H4CFM6DI
Amphenol Industrial
Solar Connectors / Photovoltaic Connectors HELIOS H4 FEMALE 10 AWG CONN H4 FEMALE HALF 10AWG/6MM2 PLUG & SOCKET CONNECTOR, RECEPTACLE 1POS Conn.;Solar;Female;Helios4H;10AWG;Panel;TUVandULApproved

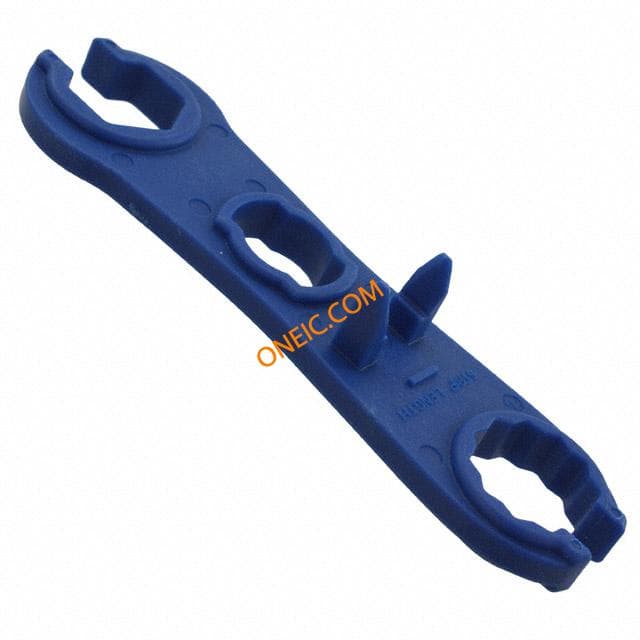

H4TW0002
