点击放大查看

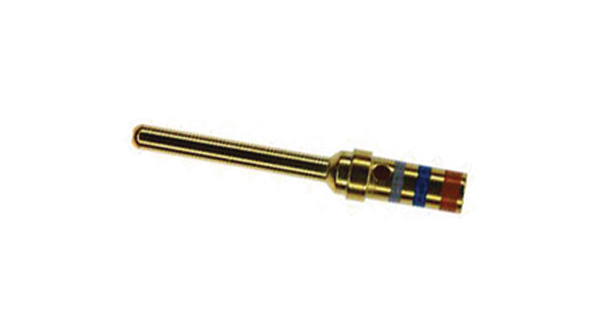

M39029/58-363
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Contacts CONT PIN CRMP 20-24AWG SZ 20 PWR M39029 Series Size 20 7.5A Male Circular Connector Contact For Use With D38999 Circular Connector, Crimp Circular MIL Spec Contacts PIN 20 GA CRIMP CONTACT, PIN, SIZE 20 SIZE 20 JT/LJT PINS Pin contact, size 20 7.5 A, M39029/58-363, Amphenol Amphenol M39029 系列 7.5A 公 压接端接 圆形 连接器 触芯, 使用于D38999 圆形连接器 |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| MIL类型 | MIL-DTL-38999 | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 尺寸 | 20 | 重量 | 0.001 |
| 包装方式 | Bulk | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Circular |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 线规或范围 - AWG | :24AWG |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | M39029 | 规格说明 | MIL-C-39029 |
| 适用产品/相关产品 | D38999 Circular Connector | ||
环境参数
| 工作温度 | +125°C | ||
Documents & Media
相关型号
M39029/56-351
amphenol
Contact SKT Crimp ST Cable Mount CONTACT SCKT 20-24AWG SZ 20 PWR M39029 Series Size 20 7.5A Female Circular Connector Contact For Use With D38999 Circular Connector, Crimp CIRCULAR CONTACT, SOCKET, SIZE 20, CRIMP CIRCULAR CONTACT, SOCKET, SIZE20, CRIMP SIZE 20 LJT SOCKETS Socket contact, size 20 7.5 A, M39029/56-351, Amphenol Amphenol M39029 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于D38999 圆形连接器
SJS820220
Amphenol PCD
Lighting Connectors RCPT SZ 20; BLUE TRIPLE SPLICE CONN HSG RCPT 3POS INLINE PIN RECEPTACLE, SIZE 20, BLUE, 3 WAY
M22520/1-01
amphenol
Crimping Tool For Mil-C-22992, Class L HAND CRIMP Crimpers PT CRIMP TOOL
SJS620200
amphenol pcd
BACC63DF0320PA 3-PIN, RECEPTACLE, SZ 20 Lighting Connectors 3P Pin Recept Sz 20 BACC63DF0320PA CONN HSG RCPT 3POS INLINE PIN
SJS520200
Amphenol PCD
ライティングコネクタ 1P Pin Recept Sz 20 BACC63DH0120PG Lighting Connectors 1P Pin Recept Sz 20 BACC63DH0120PG CONN HSG RCPT 1POS INLINE PIN
SJS620220
Amphenol PCD
Lighting Connectors 3P Pin Recept Sz 20 BACC63DF0320PC CONN HSG RCPT 3POS INLINE PIN
SJS720200
Amphenol PCD
Lighting Connectors REC SZ 20 SINGLE SPLICE GREEN CONN HSG RCPT 1POS INLINE PIN 1 Pole Female Straight Cable Mount MIL Spec Circular Connector with Male Contacts, Quick Connect QRATE Amphenol 1路 电缆安装 直向 连接器 插座 , 公触点, 快速连接接合
SJS720210
Amphenol PCD
Lighting Connectors 1 POS SIZE 20 RECP. YELLOW CONN HSG RCPT 1POS INLINE PIN RECEPTACLE, SIZE 20, YELLOW, 1 WAY
SJS620210
Amphenol PCD
ライティングコネクタ 3P Pin Recept Sz 20 BACC63DF0320PB Lighting Connectors 3P Pin Recept Sz 20 BACC63DF0320PB CONN HSG RCPT 3POS INLINE PIN
SJS820210
Amphenol PCD
Lighting Connectors RCPT SZ 20; WHITE TRIPLE SPLICE Conn In-Line Junction PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port RECEPTACLE, SIZE 20, WHITE, 3 WAY CONN HSG RCPT 3POS INLINE PIN
SJS520210
Amphenol PCD
Lighting Connectors 1P Pin Recept Sz 20 BACC63DH0120PY CONN HSG RCPT 1POS INLINE PIN

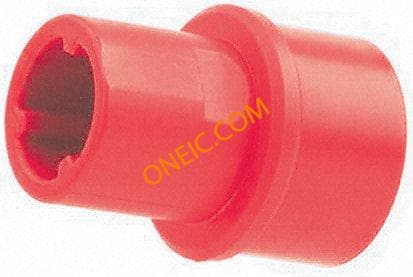

SJS820200
