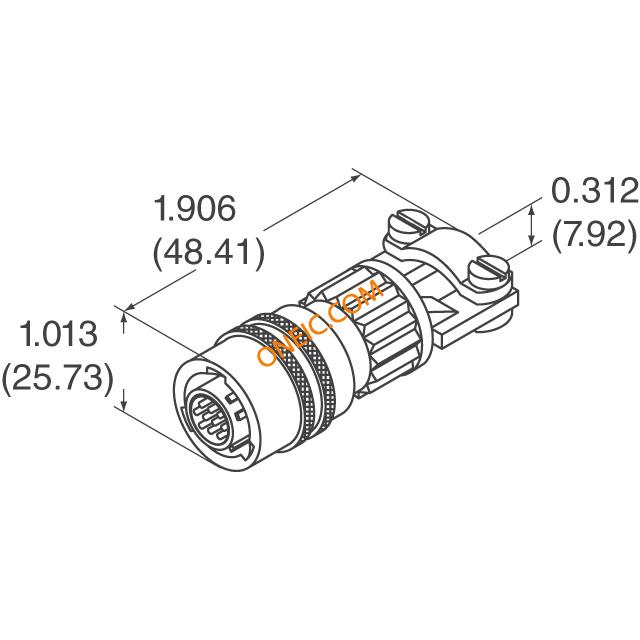

PT06A-12-10P
| Manufacturer | |
| Description | Conn Miniature Cylindrical PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONNECTOR CONN PLUG 10POS W/PINS SOLDER connector, metal circ, class a, straight plug, size 12, 10 #20 solder pin contact |
| Category |
商业参数
| 其他名称 | PT06A12-10P | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认证机构标志 | UL Recognized |
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 导线线规 | 20 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 连接器用途 | Bayonet | 插入角度 | normal (no rotation) position |
| 壳体材料 | Aluminum | 主要材料 | 26482 Commercial |
| 触点数 | 10 | 介电材料 | Neoprene |
| 位数 | 10 | 外壳尺寸-插件 | 12-10 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 10#20 |
产品信息
| 类型 | Miniature Cylindrical | 类别 | A |
| 连接器性别 | PL | 产品特性 | 5 Key/Keyway Polarization |
| 制造商全称 | PT Series | 服务等级（或'使用等级'，根据具体描述） | general duty back shell |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
