PT06A-12-10S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 10POS W/SOCKT SOLDER connector;metal circular;straight plug;size 12;10 #20 solder socket contact Circular MIL Spec Connector 10P Size 12 Straight Socket Plug Conn Miniature Cylindrical SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port connector, metal circular, straight plug, size 12, 10 #20 solder socket contact |
| Category |
商业参数
| 其他名称 | PT06A12-10S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-26482 |
| 认证机构标志 | UL Recognized | ||
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 导线线规 | 20-24 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触点尺寸 | 20 | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Chromate over Cadmium, Olive Drab |
| 行程角度 | Straight | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Bayonet | 插入角度 | normal (no rotation) position |
| 壳体材料 | Aluminum | 主要材料 | 26482 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 配接方向 | Bayonet | 触点数 | 10 |
| 介电材料 | Neoprene | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 10#20 | ||
产品信息
| 类型 | MIL-C-26482 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | PT |
| 产品特性 | 5 Key/Keyway Polarization | 制造商全称 | PT Series |
| 产品子类型 | Plugs | 服务等级（或'使用等级'，根据具体描述） | general duty back shell |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
PT00A-12-10P
amphenol
Conn MIL-C-26482 Circular PIN 10 POS Solder ST Wall Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN RCPT 10 POS WALL MNT W/PINS Circular MIL Spec Connector 10P Sz 12 Wall Mount Pin Receptacle CONNECTOR, WALL MOUNTING RECEPTACLE, CLASS A, SIZE 12, 10 #20 SOLDER PIN CONTACT
PT02A-12-10P
amphenol
Conn Miniature Cylindrical PIN 10 POS Solder ST Box Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 10P Sz 12 Box Mount Pin Receptacle CONN RECEPT 10POS W/PINS SOLDER connector;metal circular;box mounting receptacle;size 12;10 #20 solder pin cont CIRCULAR CONN, RCPT, SIZE 12, 10POS, BOX connector, metal circular, box mounting receptacle, size 12, 10 #20 solder pin cont

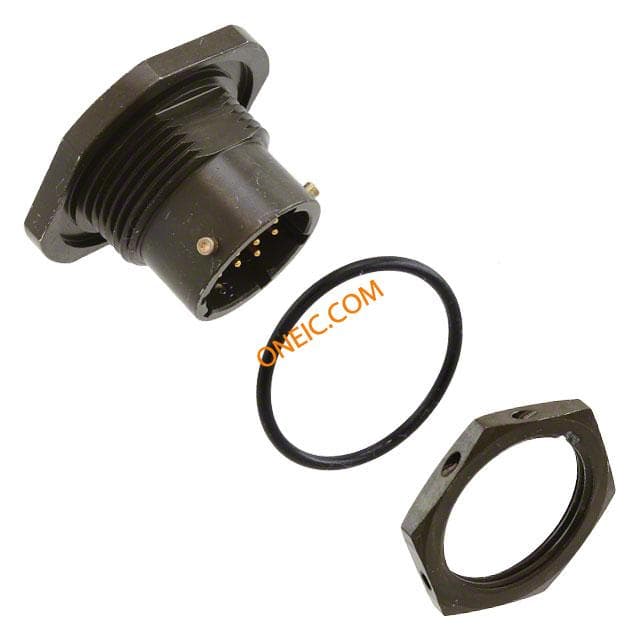

PT07A-12-10P
