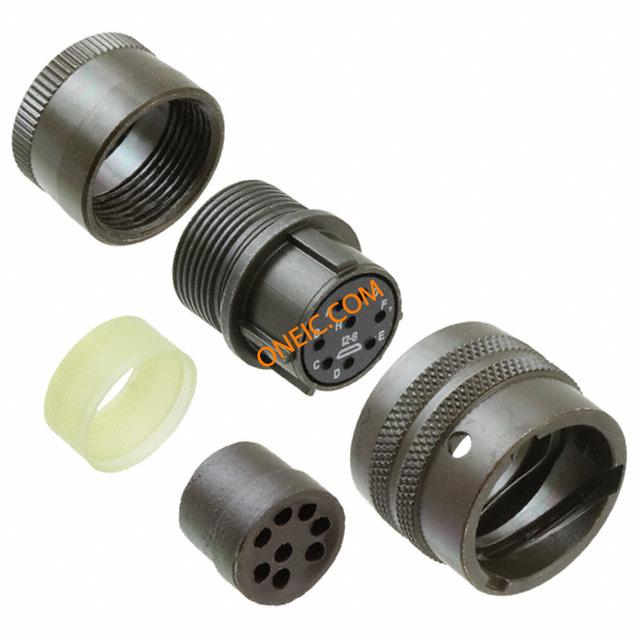

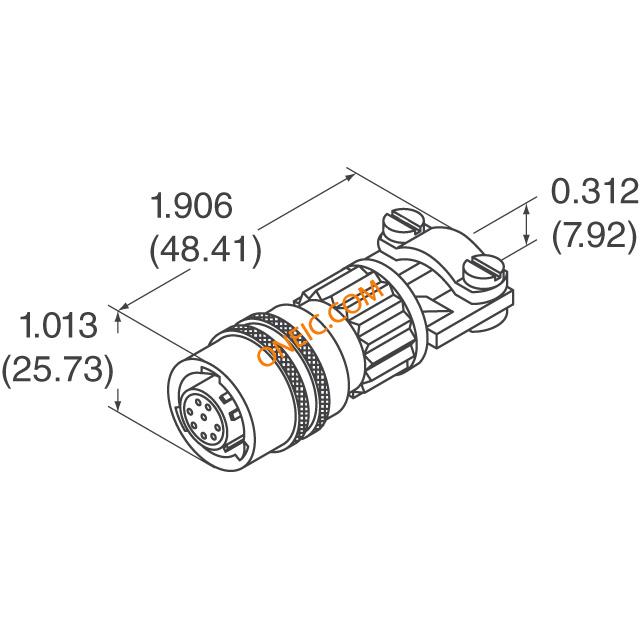

PT06E-12-8S

Business

Other Names	PT06E128S	Product Category	Circular MIL Spec Connector
Standard Package	Bulk

RoHS	Lead free / RoHS non-compliant	MIL Type	MIL-DTL-26482
Approval Agency Marking	UL Recognized

Voltage Rating

600VAC

Current Rating (Max)

7.5A

Packaging	Bulk	Shell Size	12
Wire Gauge	20-24	Orientation	N (Normal)
Shell Style	straight plug	Termination	Solder
Contact Type	socket contacts	Mounting Type	Cable Mount
Shell Plating	Chromate over Cadmium, Olive Drab	Angle of Throw	Straight
Connector Type	Plug, Female Sockets	Contact Finish	Gold
Fastening Type	Bayonet Lock	Housing Finish	Olive Drab Cadmium
Mounting Style	Wire	Package / Case	Metal
Shell Material	Aluminum Alloy	Connector Usage	Bayonet
Insertion Angle	normal (no rotation) position	Housing Material	Aluminum
Primary Material	26482 Commercial	Termination Style	Solder
1st Contact Gender	Socket (Female)	Mating Orientation	Bayonet
Number of Contacts	8	Dielectric Material	Neoprene
Number of Positions	8	Shell Size - Insert	12-8
Shell Material, Finish	Aluminum, Olive Drab Cadmium Plated	Contact Layout, Typical	8#20

Type	Miniature Cylindrical	Class	E
Gender	PL	Series	PT
Features	5 Key/Keyway Polarization	Manufacturer	PT Series
Product Type	Plugs	Service Class	environmental resisting open wire seal with grommet and nut
Application Specifics	Commercial
