点击放大查看

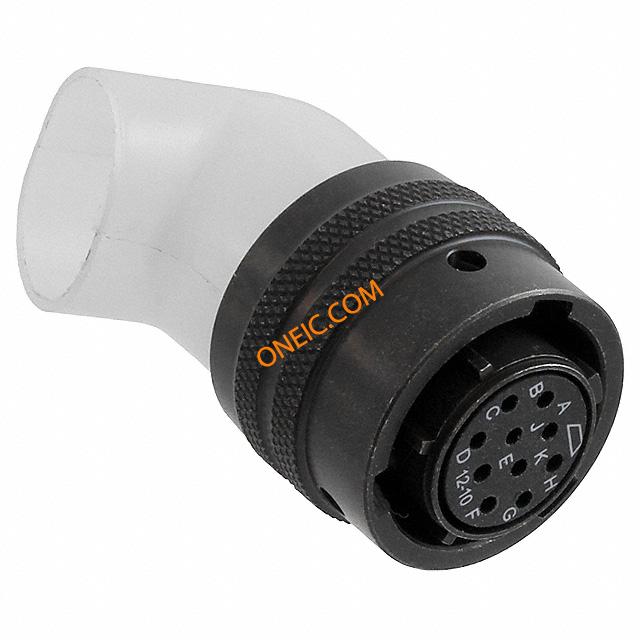

PT08P-12-10S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 10 POS Solder RA Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 10 POS R/A W/SCKT |
| Category |
商业参数
| 其他名称 | PT08P1210S | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | N (Normal) | 外壳样式 | 90 degree plug |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 插入角度 | normal (no rotation) position | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
产品信息
| 类型 | MIL-C-26482 Circular | 连接器性别 | PL |
| 服务等级（或'使用等级'，根据具体描述） | assembly with potting boot | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
