T 3360 010
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 010 3360 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 100V | Number of Poles | 5 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Diameter | 17 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 5Signal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 3-6 mm | Cable End Type | 3...6 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Package / Case | Metal | Connector Usage | Threaded |
| Locking Feature | M16 x 0.75 screw locking | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Length - Overall | 67.5 |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | M | Number of Contacts | 5 |
| Dielectric Material | Thermoplastic | Number of Positions | 5 |
| Shell Size - Insert | DIN (180 Degree) | 1st Connector Gender | Male |
| Shell Material, Finish | Die Cast, Nickel Plated | Contact Layout, Typical | 5 |
Product Info
| Type | Circular | Design | Cable plug |
| Gender | Male | Series | C 091 A |
| Features | Shielded, Strain Relief | Manufacturer | C091-A Series |
| Product Type | Connectors | Connection Method | 0.5 |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
C091 00U000 120 2
Amphenol Tuchel
$57.8911
Details

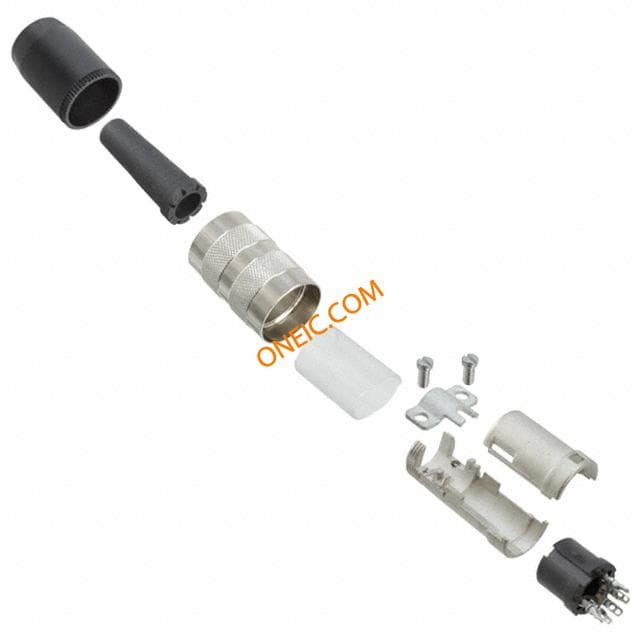

T 3361 010
