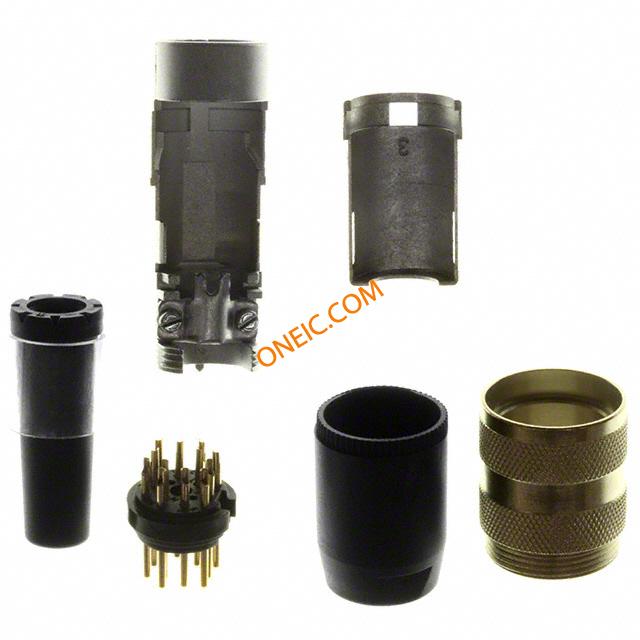

T 3635 000
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 000 05M6429 3635 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 150 V | Voltage - Supply | DIN |
| Current Rating (Max) | 3A | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 24 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | Pin | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 3-6 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :Plastic | Contact Material | :- |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 12 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Circular | Gender | :Plug |
| Series | :C 091 A | Features | Shielded, Strain Relief |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- C091A,B Series Design 19/Jan/2009
