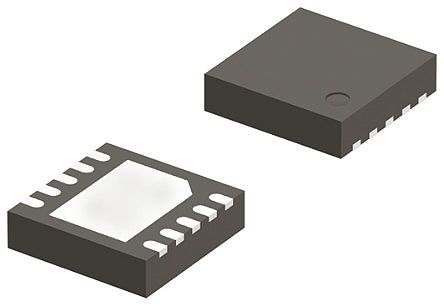

LTC2481IDD#PBF
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LTC2481IDDPBF | Standard Package | 121 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (2-Wire, I2C) | Input Type | Voltage |
| Resolution | 16bit | Input Signal | Differential |
| INL/DNL (LSB) | 10ppm of Vref | Power - Input | Single |
| Converter Type | Temperature Measurement | Data Interface | I²C, Serial, SPI™ |
| Input Polarity | Bipolar | Number of Bits | 16 |
| Voltage Rating | ±2.75V | Voltage - Rated | �2.75 |
| Current - Output | :160µA | Voltage - Supply | Not Required V |
| Resolution (Bits) | :16bit | Voltage Reference | External |
| Number of Elements | 1 | Sampling Frequency | 7.5sps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Sampling Rate (Per Second) | 7.5 | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 3 | Weight | 0.000012 |
| Packaging | Tube | Lead Style | No Lead |
| Mounting Type | Surface Mount | Number of Pins | :10 |
| Package / Case | 10-WFDFN Exposed Pad | Package Cooled | DFN EP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3 |
| Package Quantity | DFN EP | Number of Positions | 10 |
| Shell Size - Insert | 0.75(Max) | Supplier Device Package | 10-DFN (3x3) |
Product Info
| Architecture | Delta-Sigma | Printed Circuit Board | 10 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 2 Single-Ended, Bipolar; 1 Differential, Bipolar |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
