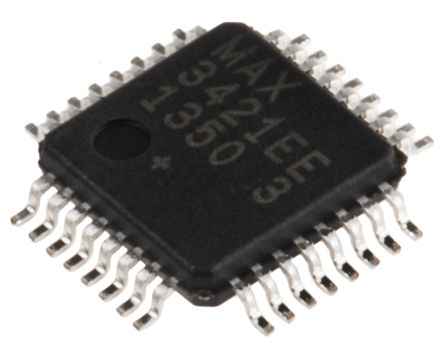

MAX3421EEHJ+
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Factory Pack Quantity | 360 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | USB 2.0 |
| ESD Protection | Yes | ||
Electrical
| Speed | Full-Speed | Data Rate | 12Mbit/s |
| Interface | SPI | Power - Input | 单 |
| Data Rate (Max) | 12Mbps | Current - Output | 15mA |
| Current - Supply | 45 mA | Voltage - Supply | 3 V ~ 3.6 V |
| Power Supply Type | Single | Number of Elements | 1 |
| Current Rating (Max) | 15mA | ||
Mechanical
| Width | 5.2mm | Height | 1.05mm |
| Length | 5.2mm | Packaging | Tray |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 32 | Package / Case | 32TQFP |
| Package Cooled | TQFP | Connector Usage | SPI |
| Package Quantity | TQFP | Size / Dimension | 5.2 x 5.2 x 1.05mm |
| Number of Positions | 32 | Supplier Device Package | 32-TQFP (5x5) |
Product Info
| Type | Controller | Series | MAX3421E |
| Function | Controller | Protocol | USB |

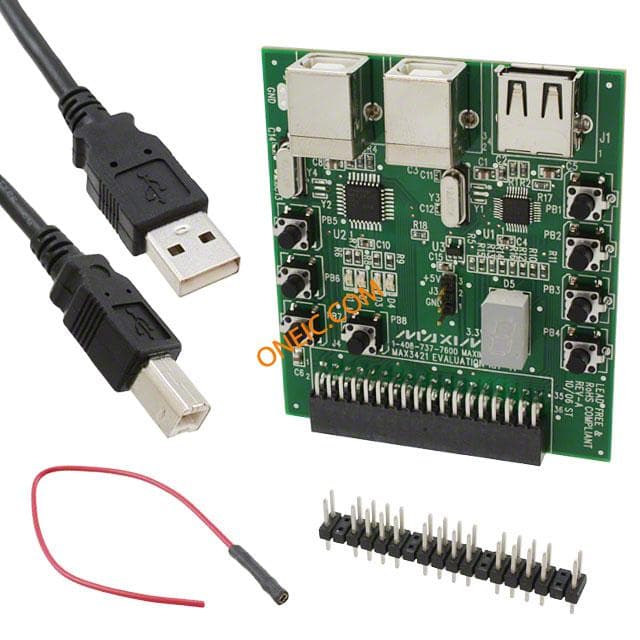

| Manufacturer | Maxim Integrated | Development Kit | MAX3421EVKIT-1+ |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- MAX3421E.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
