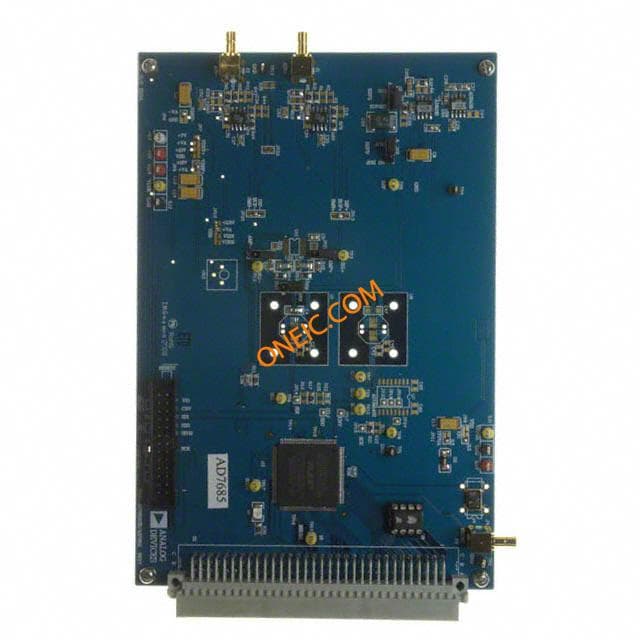

AD7685BRMZ
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :7685 | Rad Hardened | No |
Electrical
| Data Rate | :250Kbps | Interface | Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire) |
| Linearity | �0.7LSB(Typ) | S/N Ratio | 92(Typ) dB |
| Input Type | Voltage | Resolution | 16 Bit |
| Input Signal | Pseudo-Differential | INL/DNL (LSB) | ±3LSB |
| Power - Input | Single | Power - Rated | 15 W |
| Converter Type | General Purpose | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Input Polarity | Unipolar | Number of Bits | 16 |
| Voltage Rating | 5.8V | Data Rate (Max) | 250 kSPs |
| Ratio - S/H:ADC | Yes | Voltage - Rated | 5.8 |
| Current - Output | :1nA | Voltage - Supply | 2.5 V, 3.3 V, 5 V |
| Resolution (Bits) | :16bit | Voltage Reference | External |
| Number of Channels | 1 Channel | Number of Elements | 1 |
| Sampling Frequency | 250 ksps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Rise / Fall Time (Typ) | :4µs |
| Power Dissipation (Max) | 15 mW | Differential Nonlinearity | ±0.7LSB(Typ) |
| Voltage - Supply, Digital | :1.8V to 5.8V, 2.3V to 5.8V | Voltage Supply - Internal | :2.3V to 5.5V |
| Sampling Rate (Per Second) | 250k | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 93.5 dB |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.000029 |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3 |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 10 | Shell Size - Insert | 0.85 |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Series | AD7685 | Base Unit | :7685 |
| Architecture | SAR | Printed Circuit Board | 10 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Pseudo-Differential, Unipolar |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
