AD7714ARSZ-5
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | AD7714ARSZ5 |
| Standard Package | Rail / Tube | Factory Pack Quantity | 47 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | S/N Ratio | 137 dB |
| Input Type | Voltage | Resolution | 24 Bit |
| Input Signal | Pseudo-Differential|Differential | INL/DNL (LSB) | ±0.0015%FSR |
| Power - Input | Analog and Digital | Power - Rated | 7 W |
| Converter Type | General Purpose | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Input Polarity | Unipolar|Bipolar | Number of Bits | 24 |
| Reference Type | External, Internal | Voltage Rating | 2.5V|±2.5V |
| Data Rate (Max) | 1 kSPs | Ratio - S/H:ADC | No |
| Voltage - Rated | 2.5/�2.5 | Voltage - Supply | 5 V |
| Digital I/O Lines | 串行 （SPI） | Distortion Rating | ±0.0015%FSR |
| Power Supply Type | Single | Voltage Reference | External |
| Number of Channels | 5 Channel | Number of Elements | 1 |
| Sampling Frequency | 1 ksps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Analog and Digital | Gain Bandwidth Product | +/- 0.003 %FSR |
| Power - Average Forward | 5 mW | Power Dissipation (Max) | 7 mW |
| Sampling Rate (Per Second) | 1k | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 137 dB |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 5.38mm | Height | 1.79mm |
| Length | 10.34mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 28 |
| Package / Case | 28SSOP | Package Cooled | SSOP |
| Length - Overall | 10.2 | Package Quantity | SSOP |
| Size / Dimension | 10.34 x 5.38 x 1.79mm | Number of Positions | 28 |
| Shell Size - Insert | 1.75 | Supplier Device Package | 28-SSOP |
| Shell Size - Insert (Convert To) | Delta Sigma | ||
Product Info
| Series | AD7714 | Architecture | Delta-Sigma |

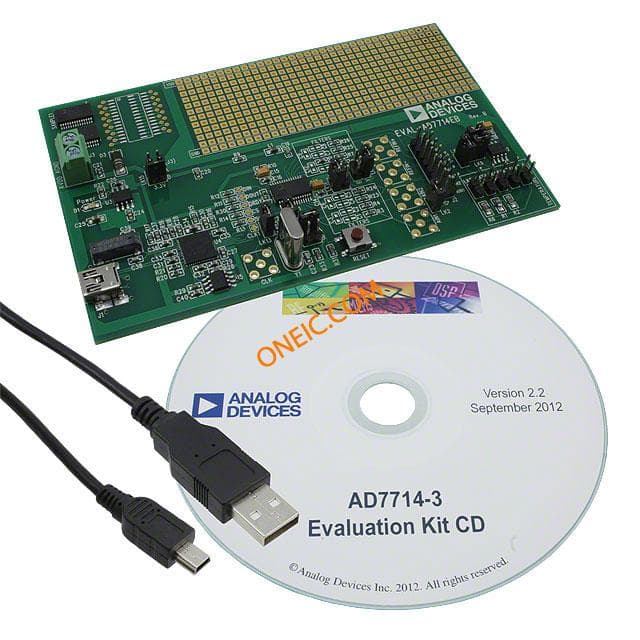

| Manufacturer | Analog Devices | Development Kit | EVAL-AD7714-3EBZ |
| Printed Circuit Board | 28 | Number of A/D Converters | 4|3 |
| Number of Inputs and Type | 3 Differential, Unipolar; 3 Differential, Bipolar; 5 Pseudo-Differential, Unipolar; 5 Pseudo-Differential, Bipolar | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
