AD7785BRUZ-REEL
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | AD7785BRUZ-REELCT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Input Type | Voltage |
| Resolution | 20 Bit | Input Signal | Differential |
| INL/DNL (LSB) | ±15ppm of FSR | Converter Type | General Purpose |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Bipolar |
| Number of Bits | 20 | Reference Type | External, Internal |
| Voltage Rating | ±2.5V | Data Rate (Max) | 470 SPs |
| Ratio - S/H:ADC | No | Voltage - Supply | 2.7 V to 5.25 V |
| Voltage Reference | Internal|External | Number of Channels | 3 Channel |
| Sampling Frequency | 470 sps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Gain Bandwidth Product | +/- 10 uV |
| Power - Average Forward | 2.5 mW | Power Dissipation (Max) | 2.5 mW |
| Number of Outputs and Type | 1 | Sampling Rate (Per Second) | 470 |
| Differential - Input:Output | Yes | ||
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 5 mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Connector Type | MICROWIRE™, QSPI™, Serial, SPI™ | Mounting Style | SMD/SMT |
| Package / Case | 16TSSOP | Length - Overall | 5 |
| Package Quantity | TSSOP | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Series | AD7785 | Architecture | Delta-Sigma |

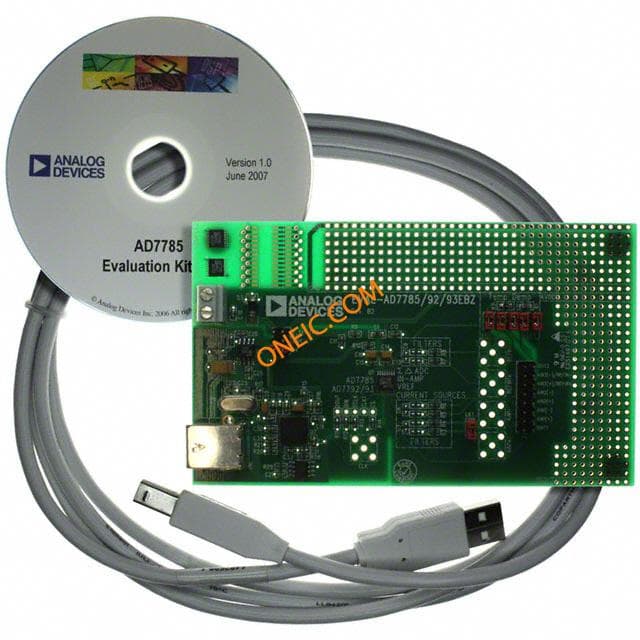

| Manufacturer | Analog Devices | Development Kit | EVAL-AD7785EBZ |
| Output Configuration | Surface Mount | Printed Circuit Board | 16 |
| Number of A/D Converters | 3 | Number of Inputs and Type | 3 Differential, Unipolar; 3 Differential, Bipolar |
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- AD7785.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
