ADUC7026BSTZ62-RL
| Manufacturer | |
| Description | MCU 16-bit/32-bit ADuC7xxx ARM7TDMI RISC 62KB Flash 3.3V 80-Pin LQFP T/R IC MCU ARM7 62KB FLASH 80LQFP ARM Microcontrollers - MCU Precision 1 MSPS 12-Bit Analog I/O |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MCU | Other Names | ADUC7026BSTZ62-RLCT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | No | ||
Electrical
| Speed | 44 MHz | RAM Size | 8 KB |
| Core Size | 16/32-Bit | Core Type | ARM7TDMI |
| Interface | I2C/SPI/UART | Clock Rate | 40 MHz |
| Memory Size | 8192 B | Memory Type | RAM |
| Number of I/O | 40 | Voltage - I/O | 2.7 V to 3.6 |
| Number of Bits | 12 | Voltage Rating | 2.7 |
| Watchdog Timer | 1 | Data Converters | A/D 12 x12b; D/A 4x12b |
| Number of DAC's | 4 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 3.3 V |
| Resolution (Bits) | 12 bit | Number of Channels | 12 |
| Program Memory Size | 62 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 12 | Voltage - Supply (Min) | 3.6 |
| Power Dissipation (Max) | 120(Typ) mW | Number of Counter/Timers | 2 x 16 bit |
| Voltage - Supply, Analog | 2.7 V to 3.6 V | Number of Bits per Element | 12 |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | ||
Mechanical
| Width | 12 | Height | 1.4 mm |
| Length | 12 mm | Packaging | Tape & Reel (TR) |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 80LQFP |
| Length - Overall | 12 | Package Quantity | LQFP |
| Number of Positions | 80 | Shell Size - Insert | 1.4 |
| Supplier Device Package | 80-LQFP (12x12) | Number of Cores/Bus Width | 16|32 Bit |
Product Info
| SPI | 1 | Series | ARM7 |
| Protocol | 1 | On-Chip RAM | 12-chx12-bit |
| Peripherals | PLA, PWM, PSM, Temp Sensor, WDT | Architecture | RISC |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART | Manufacturer | Analog Devices |
| Core Processor | ARM7® | Number of Timers | 4 |
| RF Family/Standard | ADuC7xxx | DigiKey Programmable | Yes |
| Printed Circuit Board | 80 | Number of Inputs and Type | 40 I/O |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

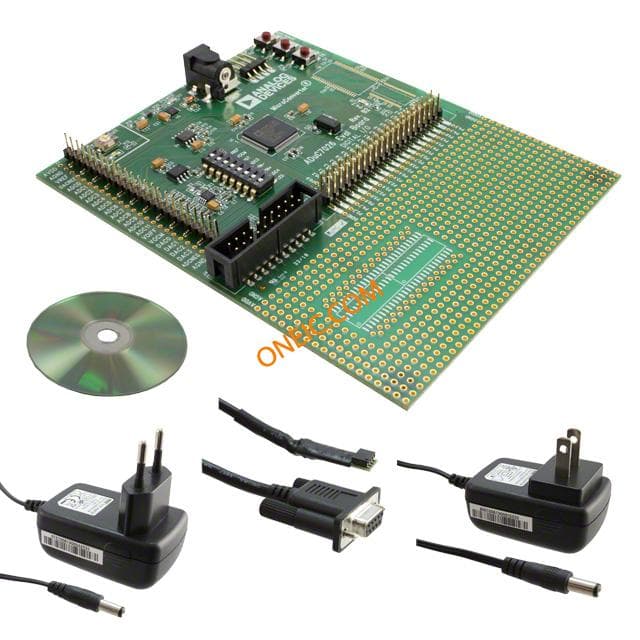

EVAL-ADUC7026QSZ
analog devices
Evaluation Board For Precision Analog Microcontroller, 12-Bit Analog I/O, ARM7TDMI MCU KIT DEV FOR ADUC7026/7027 Development Boards & Kits - ARM EVAL-ADUC7026 ARM7, ADUC7026, QUICKSTART, DEV KIT Analog Devices 数据采集 评估测试板
$581.3986
Details

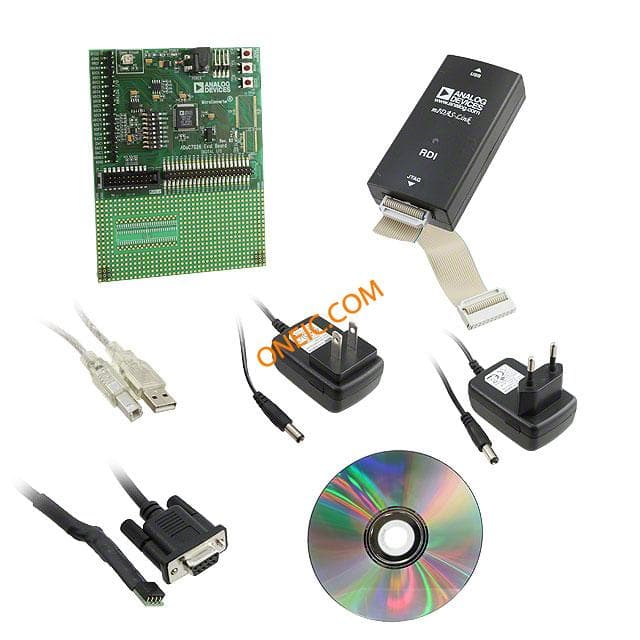

EVAL-ADUC7026QSPZ
