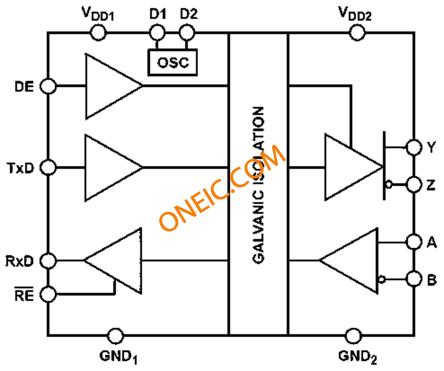

EVAL-ADM2482EEB3Z
| Manufacturer | |
| Description | Evaluation Kit For 2.5 kV Isolated RS-485 Transceivers With Integrated Transformer Driver BOARD EVAL FOR ADM2482 EVAL-ADM2482EEB3Z, Development Kit, RS-485, Evaluation Board for ADM2482E Interface Development Tools ADM2482E EVAL BRD ADM2482E, TXRX, RS485, EVAL BOARD Analog Devices RS-485 开发套件 |
| Category |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALADM2482EEB3Z |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 接口 | RS-485 | 供电电流 | 6 mA |
| 供电电压 | 5 V | 元件数量 | :- |
机械参数
| 重量 | 0.25 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 系列 | ADM2482E |
| 内容 | Board | 产品特性 | :- |
| 功能 | Evaluation board, 3.3 V supply | 套件类型 | :- |
| 技术 | RS-485 | 套件内容 | Evaluation Board for ADM2482E |
| 主要用途 | Interface, Transceiver, RS-485 | 卡标准 | Development Kit |
| 工具类型/特性 | ADM2482E | 射频系列/标准 | ADM2482 |
| 使用的IC/零件 | ADM2482 | 芯片组制造商 | :Analog Devices |
| 应用细节 | :- | 适用产品/相关产品 | ADM2482E |
环境参数
| 工作温度 | - 40 C | ||
