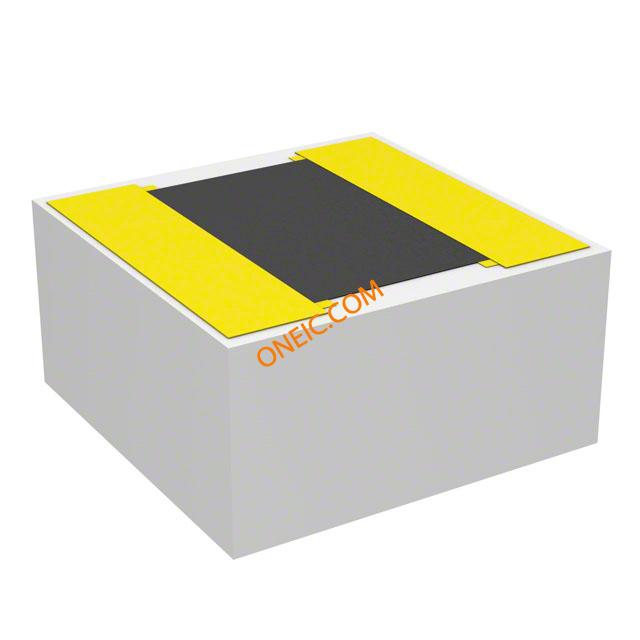

C1K131350R0G4F2
| Category |
对参数有疑问？问 AI 助手
Business
| メーカ | Anaren | Other Names | 1173-1035-2 |
| Standard Package | 500 | ||
Compliance
| RoHS | いいえ | ||
Electrical
| Frequency | 17 GHz | Tolerance | 2 % |
| Resistance | 50 Ohms | Power (Watts) | 2W |
| Power - Rated | 2 W | Resistance (Ohms) | 50 |
| Power - Peak Pulse | 2 W | Resistance - Input | 50 Ohms |
Mechanical
| Size | 0.05 in W x 0.05 in L x 0.025 in H | Width | 0.05 in |
| Height | 0.027" (0.69mm) | Packaging | Tape & Reel (TR) |
| End - Size | SMD/SMT | Size - Body | 0.05 in |
| Height (Max) | 0.025 in | Package / Case | Reel |
| Size / Dimension | 0.050" L x 0.050" W (1.27mm x 1.27mm) | Termination Style | SMD/SMT |
| Number of Terminations | 2 | Supplier Device Package | 1313 |
Product Info
| Features | RF, High Frequency | Composition | Thick Film |
Environmental
| Mechanical Life | Mouser 初 | Operating Temperature | - 55 C to + 150 C |
| Temperature Coefficient | 200 PPM / C | Operating Temperature - Junction | - 55 C to + 150 C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- C1K131350R0G4F2~
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
