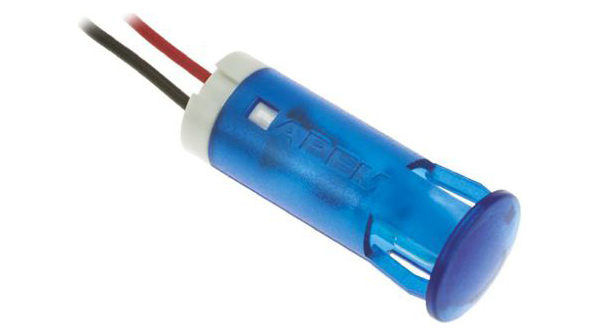

QS103XXHB220
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 3 | Voltage | 230 VAC |
| Lamp Type | LED | Optic Size | 10 mm |
| Luminous Flux | 1600 mcd | Voltage Rating | 220 V ac |
| LED Forward Current | 3 mA | LED Forward Voltage | 3.3 V |
| Current Rating (Max) | 3 mA | ||
Mechanical
| Length | 28.25 mm | Material | Polycarbonate |
| LED Color | 蓝色 | Frame Type | Recessed |
| Lens Color | Blue Diffused | Light Color | Blue |
| Termination | Lead Wires | Hole Diameter | 10mm |
| Housing Color | Blue | Lens Diameter | 12 mm |
| Mounting Type | Panel mount | Connector Type | 引线 |
| Mounting Style | Snap-In | Termination Style | Wires, 200 mm |
| Color - Connectors | 蓝色 | Diameter - Outside | 10 |
| Illumination Color | Blue | Mounting Hole Diameter | 10mm |
| Diameter - Outside, Non-Expanded | 12 x 28.25 mm | ||
Product Info
| Type | Panel Mount | Series | QS |
| Lens Type | 薄型 | Description | High brightness |
| Lamp/Magnifier Type | 12 mm | Angle of Incidence (AOI) | 45 |
Environmental
| Operating Temperature | -30...+85 °C | Luminous Flux @ Current/Temperature | 1600 mcd |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- QS-Series-4pp-Snap-In-LED-V7.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
