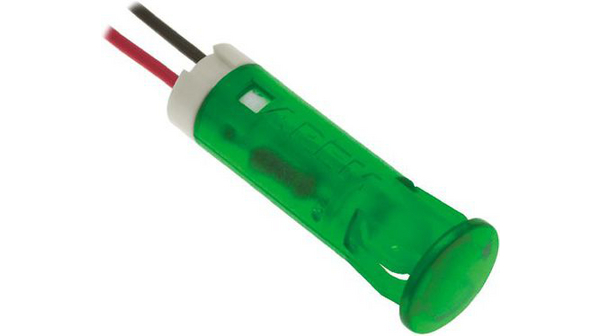

QS83XXG24
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 20 | Voltage | 24 VDC |
| Lamp Type | LED | Optic Size | 8 mm |
| Luminous Flux | 20 mcd | Voltage Rating | 24 V dc |
| LED Forward Current | 20 mA | LED Forward Voltage | 2.2 V |
| Current Rating (Max) | 20 mA | ||
Mechanical
| Length | 28 mm | LED Color | 绿色 |
| Frame Type | Recessed | Lens Color | Green Diffused |
| Light Color | Green | Termination | Lead Wires |
| Hole Diameter | 8mm | Housing Color | Green |
| Lens Diameter | 10 mm | Connector Type | 引线 |
| Mounting Style | Snap-In | Termination Style | Wires, 200 mm |
| Color - Connectors | 绿色 | Diameter - Outside | 8 |
| Illumination Color | Green | Mounting Hole Diameter | 8mm |
| Diameter - Outside, Non-Expanded | 10 x 28 mm | ||
Product Info
| Type | Panel Mount | Series | QS |
| Lens Type | 薄型 | Lamp/Magnifier Type | 10 mm |
| Angle of Incidence (AOI) | 30 | ||
Environmental
| Operating Temperature | -30...+85 °C | Luminous Flux @ Current/Temperature | 20 mcd |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- QS-Series-4pp-Snap-In-LED-V7.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
