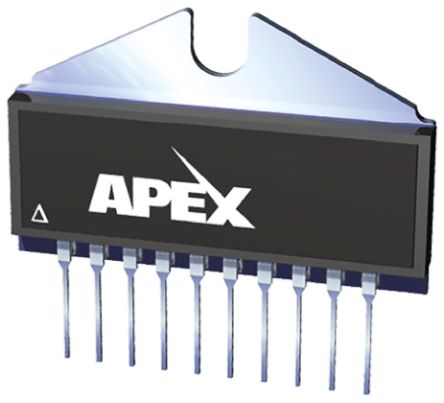

PA15FL
| Manufacturer | |
| Description | PA15FL, Operational Amplifier High Voltage, 5.8MHz, 10-Pin SIP Apex 高电压 运算放大器, 5.8MHz, 10针 SIP |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Slew Rate | 20V/µs | Power - Input | 双 |
| Conversion Type | 20V/µs | Voltage - Supply | ±150V |
| Power Supply Type | Dual | Number of Channels | 1 |
| Number of Elements | 1 | Typical Voltage Gain | 111 dB |
| Gain Bandwidth Product | 5.8MHz | Voltage - Supply, Dual (V+/-) | ±150V |
| Voltage - Output Difference (Typ) @ Distance | 111 dB | ||
Mechanical
| Width | 6.86mm | Height | 22.35mm |
| Length | 30.99mm | Mounting Type | Through Hole |
| Number of Pins | 10 | Package Cooled | SIP |
| Package Quantity | SIP | Size / Dimension | 30.99 x 6.86 x 22.35mm |
| Number of Positions | 10 | ||
Product Info
| Function | Y | Amplifier Type | High Voltage |
Environmental
| Operating Temperature | +85 °C | ||
