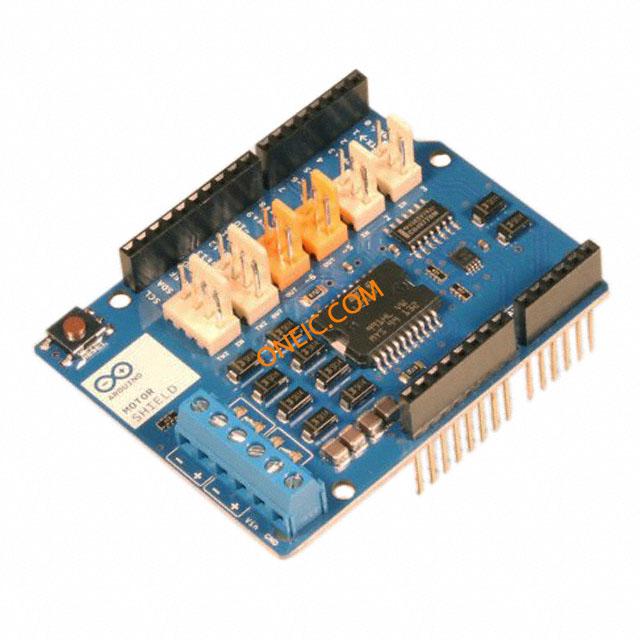

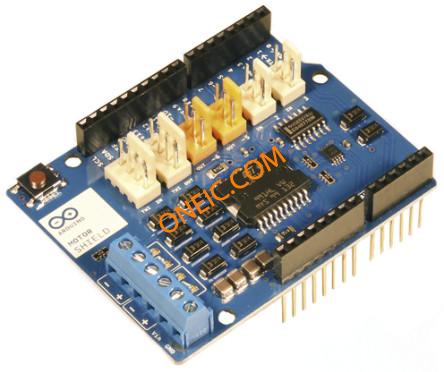

A000079
| Manufacturer | |
| Description | Power Management IC Development Tools ARDUINO MOTOR SHIELD REV 3 ARDUINO SHIELD - MOTOR SHIELD Arduino Motor Shield Rev3 L298, MOTOR CONTROL, ARDUINO SHIELD Arduino 电动机 扩展板 Ver. 3 |
| Category |
商业参数
| 产品 | Motor Shields | 其他名称 | 1050-1026 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | AVR | 额定电压 | 5 V to 12 V |
| 输出电流 | 4 A | ||
机械参数
| 重量 | 0.05 | 包装方式 | Bulk |
| 尺寸/外形 | 2.7 in x 2.1 in | ||
产品信息
| 类型 | Motor / Motion Controllers & Drivers | 内容 | Board |
| 产品特性 | :L298 Full Bridge Driver, 2 Channels | 技术 | Microcontroller |
| 套件内容 | Arduino Motor Shield | 主要用途 | Power Management, Motor Control |
| 卡标准 | Development Kit | 附件类型 | :Arduino Shield |
| 工具类型/特性 | L298 | 适用产品/相关产品 | :Arduino Boards |
环境参数
| 机械寿命 | New At Mouser | ||
Documents & Media
相关型号

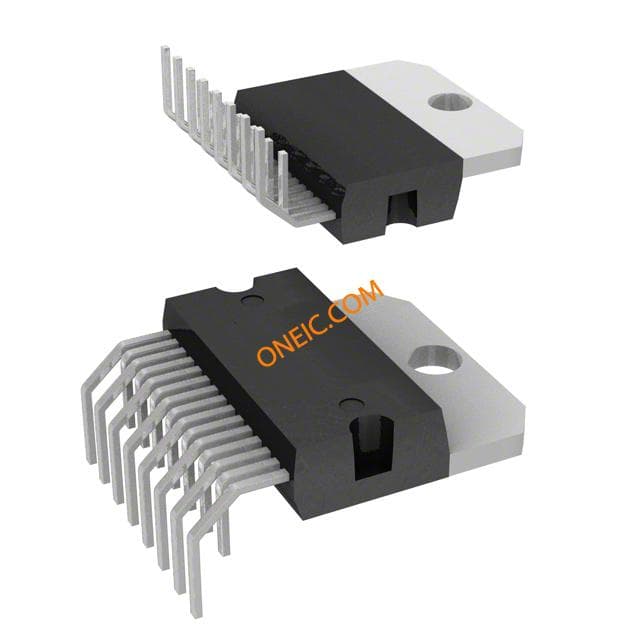

L298HN
