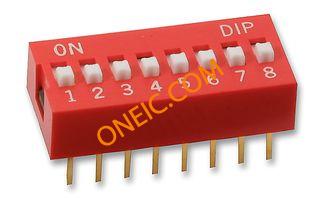

MCNDS-08-V
| Manufacturer | |
| Description | SWITCH, DIL, 8WAY, SPST-CO |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365007 |
Electrical
| Contact Resistance | :50mohm | Current - Max/Contact | :25mA |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Pitch | :2.54mm | Width | :9.9mm |
| Length | :7.1mm | Weight | 0.051 |
| Lead Spacing | :2.54mm | Pitch - Post | :7.62mm |
| Actuator Style/Size | :Raised | Number of Positions | :8 |
| Contact Layout, Typical | :SPST | 1st Connector Mounting Type | :Through Hole |
Product Info
| Series | :DS | Switch Type | :DIP |
Environmental
| Operating Temperature | :70°C | ||
